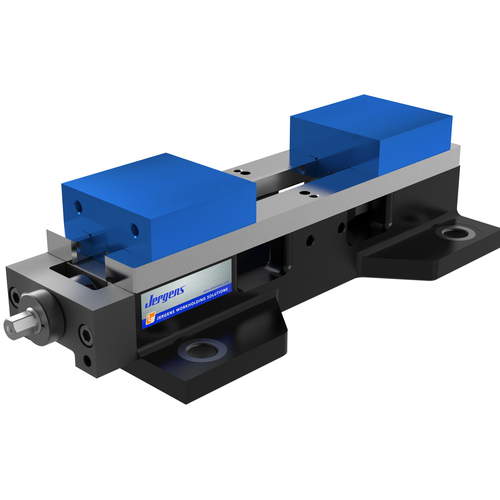

100 mm Ball Lock Self-Centering Vises
| Type | Ball Lock Self-Centering Vises | Compatible With | Jergens Ball Lock Quick Change Mounting System, Jergens Ball Lock subplates |
| Jaw Width | 100 mm | Base Width | 200 mm |
| Jaw Depth | 30 mm | Base Height | 85.6 mm |
| Jaw Height | 30 mm | Weight | 17 kg |
| Jaw Opening Capacity | 8.055″ | Maximum Clamping Force | 4,200 lbs |
Product Features
| Remarks | •Features and Benefits: •Self-Centering vises provide quick, simple fixturing for concentric machining of different sized workpieces. •Adjustable gib design increases accuracy. •Compact design in 3 extruded aluminum base styles for easy setup and to reduce weight on worktable. •Fully sealed, patented lead screw assembly for long maintenance free service. Openings allow chips to flow out of the vise base. •Hardened steel rails, ground within ±0.001″ (0.025mm) provide precise location, resist wear and provide strong support to jaws. | Country of Origin | USA |
Shipping Info
Package Weight
28.9
