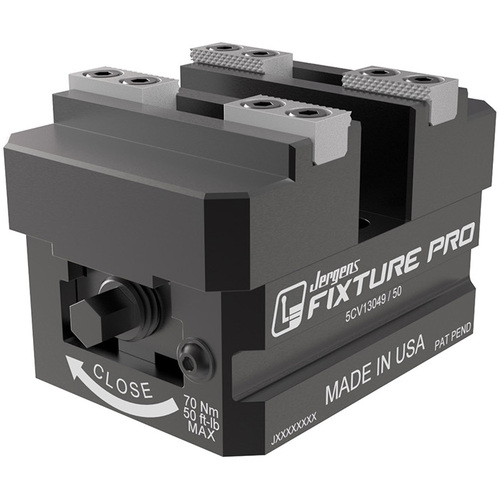

75 mm Jaw Width × 12-85 mm Jaw Opening Capacity, Fixture-Pro 75mm Self-Centering Vise
| Type | Fixture-Pro 75mm Self-Centering Vise | Base Width | 75 mm |
| Jaw Width | 75 mm | Base Height | 53 mm |
| Jaw Depth | 28 mm | Weight | 3.1 kg |
| Jaw Height | 28 mm | Maximum Clamping Force | 3,500 lbs at 50 foot lbs |
| Jaw Opening Capacity | 12-85 mm |
Product Features
| Remarks | •Quick change jaws, no tools required. •Reversible Jaws. •Pull-down jaw design minimizes jaw lift. •Adjustable centerline, easy re-centering. •Versatile mounting options, compatible with the following popular platforms: •Jergens Quick-Loc (52mm pattern). •Lang Quick Point (52mm pattern). •5th Axis RockLock (52mm pattern). •Standard vise includes Insert Jaws with serrated inserts. •Vises can be ordered with alternate jaw styles installed. To order alternate jaws, replace the -IN suffix of the standard part number with one of the following: •A for aluminum soft jaws. •S for steel soft jaws. •H for hardened step jaws. •Additional jaw sets can be purchased separately. •Includes hex wrench. •Max clamping force: 3,500 lbs @ 50 ft*lbs. | Country of Origin | USA |
Shipping Info
Package Weight
7.75
