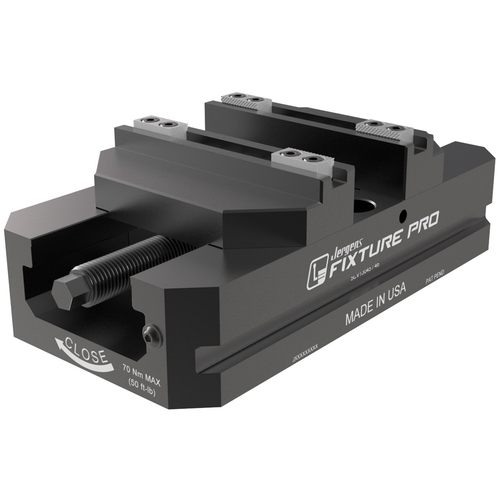

5CV13045-IN VISE TR M18-2
| Type | Fixture-Pro 130mm Self-Centering Vise | Maximum Clamp Force | 3,500 lbs at 50 foot lbs |
| Jaw Width | 130 mm | Base Height | 130 mm |
| Jaw Opening Capacity | 27 mm | Base Width | 53 mm |
| Jaw Height | 27 mm |
Product Features
| Remarks | •Quick change jaws, no tools required. •Reversible Jaws. •Pull-down jaw design minimizes jaw lift. •Adjustable centerline, easy re-centering. •Versatile mounting options, compatible with the following popular platforms: •Jergens Fixture Pro – QLS (50mm pattern). •Jergens Fixture Pro – Drop & Lock (60mm pattern). •Jergens Quick Loc (52mm & 96mm patterns). •Lang Quick Point (52mm & 96mm patterns). •5th Axis RockLock (52mm & 96mm patterns). •Standard vise includes Insert Jaws with serrated inserts. •Vises can be ordered with alternate jaw types installed by adding the one of the following suffixes to a base part number: •A for aluminum soft jaws. •S for steel soft jaws. •H for hardened step jaws. •Additional jaw sets can be purchased separately. •Includes hex wrench. •Max clamping force: 3,600 lbs @ 50 ft*lbs. | Country of Origin | USA |
Shipping Info
Package Weight
24.5
