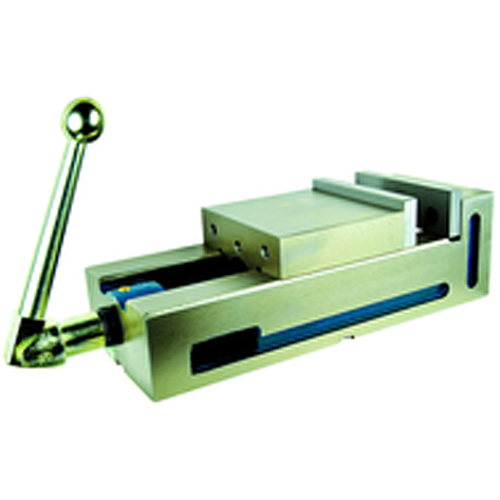

Plain NC/CNC Precision Machine Vise - 6″ Jaw Width
| Type | Plain NC/CNC Precision Machine Vise | Base Width | 8 1/4″ |
| Jaw Width | 6″ | Jaw Depth | 1 1/2″ |
| Jaw Opening Capacity | 5 1/2″ | Weight | 63 lbs |
| Jaw Height | 1 1/2″ | Overall Length | 16 3/4″ |
| Base Length | 16 3/4″ | Overall Height | 4 3/8″ |
| Base Height | 4 3/8″ | Overall Width | 8 1/4″ |
Product Features
| Remarks | •NC/CNC-Precision Vise-6″ Only Where high precision machining is demanded and where vises must be used in multiples of 2, 3, 4 or more. •Flame hardened bed for wear resistance •Hardened and ground jaw plates •Ground surface top and bottom of vise bed, tops of both jaws in pairs, all jaw plate mounting surfaces •Needle bearing thrust collar. Cuts friction and adds clamping power. •Spherical Segment Eliminates Jaw Lifting and Work Piece Tilting •Hardened lead screw with ground threads •Swivel handle •Coolant trough on vise body and swivel base | Country of Origin | CHINA |
Shipping Info
Hazard Code
W
Shipping Notes
Weighted Item. Additional Costs Apply.
Package Length
18.80000
Package Width
8.70000
Package Height
8.60000
Package Weight
52.9
