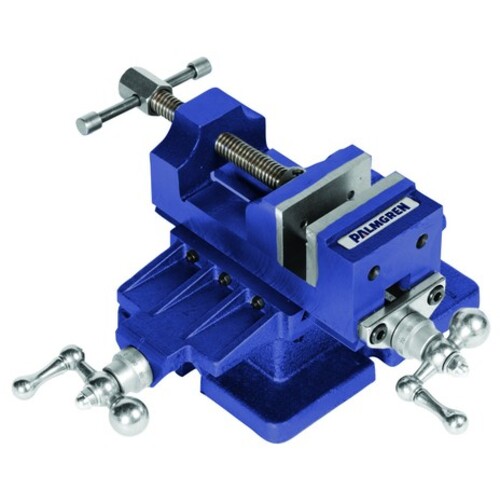

Cross Slide Vise - Model 30301-3″ Jaw Width
| Type | Cross Slide Vise | Throat Depth | 1 3/4″ |
| Jaw Width | 3″ | Model No | 30301 |
| Jaw Opening Capacity | 3″ | Jaw Depth | 1 3/4″ |
| Jaw Height | 1 3/4″ | Weight | 26 lbs |
| Base Length | 7 5/8″ | Cross Travel | 3 1/2″ × 4″ |
| Base Width | 6 5/8″ | Overall Height | 5 1/2″ |
Product Features
| Remarks | •These units will accurately move the work in two directions •This gives your drill press movements and positioning similar to a vertical mill •Feed screws have precision cut Acme threads •Dials are graduated in .001″ increments •Each dial may be easily adjusted to start at zero •Ball crank handles are solid and balanced •Cross slide travel is 3–1/2″ × 4″, bed height is 3–3/4″ and overall height is 5–1/2″ •By removing two screws,vise can be easily removed from base for use as a conventional drill press vise. | Country of Origin | USA |
Shipping Info
Package Weight
26.58
