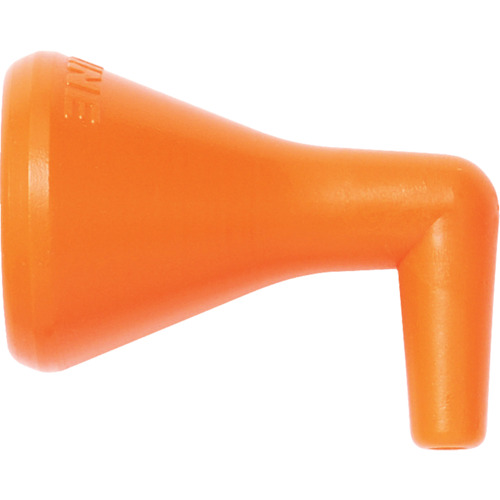

1/16″ 90 Degree Nozzle 20 Piece - Coolant Hose System Component
| Type | Nozzles | For Use With | Low pressure coolant flow applications |
| Nozzle Diameter | 1/16″ | Style | 90° Nozzle |
| Hose Inside Diameter | 1/4″ | Recommended Flow Rate | 250 gph |
| Thread Type | 90° | Nozzle Degree | 90° |
| Acid Resistant | No | Description | 1/16″ 90 Degree Nozzle |
| Number of Pieces | 20 |
Product Features
| Remarks | •loc-LINE will stay in position without any spring back. •Since LOC-LINE has a ball and socket design, bending doesn t decrease the inside diameter and Won't kink like copper tubing. Also, there is no internal positioning rod that can break or restrict fluid flow. •loc-LINE is electronically non-conductive. It s ideal for use as an EDM flushing hose. •loc-LINE is designed for low pressure applications. The following maximum flow rates are recommended to avoid hose jetting. 1/4″ LOC-LINE 250 gallons/hour 1/2″ LOC-LINE 478 gallons/hour 3/4″ LOC-LINE 1,140 gallons/hour | Country of Origin | USA |
Shipping Info
Package Length
7.00000
Package Width
6.20000
Package Height
.52800
Package Weight
0.076
