Shoulder Screws/Stripper Bolt Shim Assortment - Lengthening
Additional Canadian Tariff of 25 %
| Type | Shoulder Screws/Stripper Bolt Shim Assortment - Lengthening | Sizes Diameter | 15 each: 0.171″ I.D × 0.248″ O.D. in 0.005″ and 0.015″; 0.187″ I.D × 0.248″ O.D. in 0.032″; 0.234″ I.D. × 0.308″ O.D. in 0.005″, 0.015″, and 0.032″; 0.289″ I.D. × 0.371″ O.D. in 0.005″ and 0.015″; 0.296″ I.D. × 0.371″ O.D. in 0.032″; 0.352″ I.D. × 0.496″ O.D. in 0.005″, 0.015″, and 0.032″; 0.473″ I.D. × 0.621″ O.D. in 0.005″, 0.015″, and 0.032″; and 0.598″ I.D. × 0.746″ O.D. in 0.005″, 0.015″, and 0.032″ |
| Screw Size | 1/4″ to 3/4″ | Number of Pieces | 270 |
Product Features

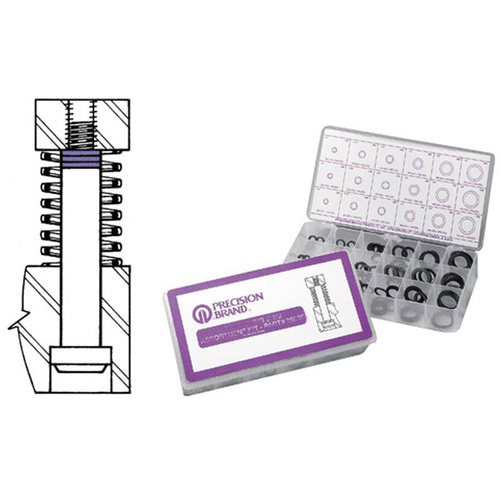

| Remarks | Lengthening Shims fit over the stripper screw threads and under the shoulder which, in effect, lengthens the stripper screw length. Contains 3 thicknesses: 0.005″ from 1095 blue tempered spring steel and 0.015″ and 0.032″ from 1075 tempered spring steel. Fits six different shoulder screw sizes from 1/4″ to 3/4″ diameter. | Country of Origin | USA |
Shipping Info
Package Length
8.30000
Package Width
4.40000
Package Height
1.40000
Package Weight
0.43
