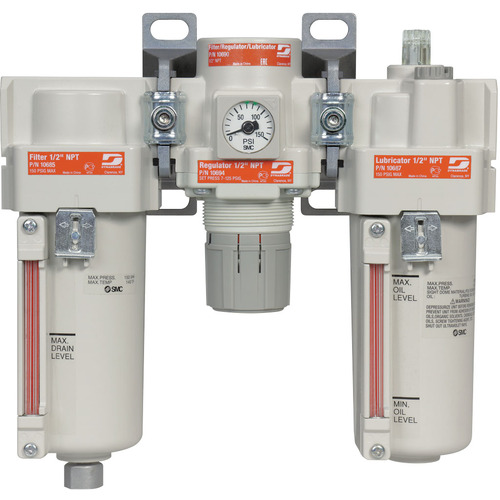

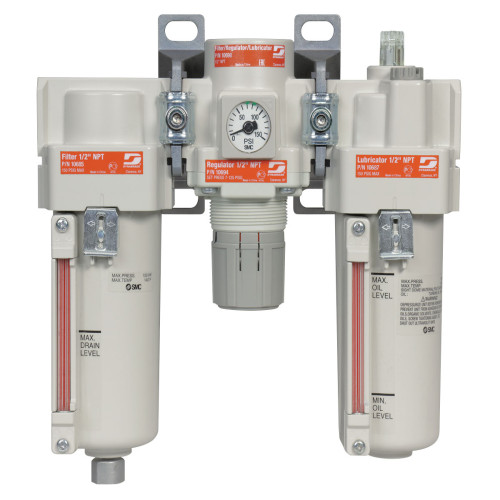

1/2″ NPT Filter-Regulator-Lubricator Assy.

‹ ›

1/2″ NPT Filter-Regulator-Lubricator Assy.

Item # 1096284

Brand: Dynabrade

MFG #: 10690

Legacy Part #: PF3110690

Quantity Available

loading...

Type

Filter-Regulator-Lubricator

Port Size

1/2″

Thread Type

NPT

Model No

FRL40

Maximum Pressure

150 PSIG

Product Features

Remarks

Use air preparation devices, such as Filter-Regulator-Lubricators (FRL Units) are an excellent means of keeping your air supply in top condition, as well as enabling your tools and equipment to operate at their peak performance.
Unit has modular connections with mounting brackets for easy installation.
1/2″ NPT Inlet/Outlet Ports. Also included are bushings(2) to reduce the 1/2″ NPT openings of the Filter-Regulator-Lubricator to 3/8″ NPT.
Filter: Five-micron filter element is standard.
Manually rotate drain plug to discharge contaminants.
Regulator: Compensation built into unit responds faster to changes in incoming pressure and flow.
Built-in dual PSIG|Bar pressure dial gauge.
Lubricator: Built-in check valve permits tool to be filled with oil without having to turn off air pressure. Adjustable oil drop to meter amount of oil into air system.

Country of Origin

USA

Shipping Info

Package Weight

0
