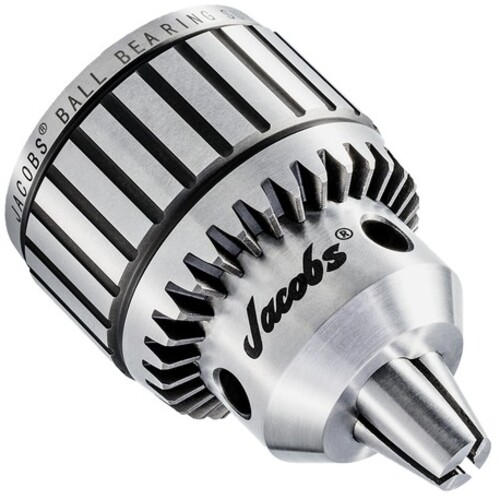

8-1/2N BALL BEARING CHUCK
| Maximum Capacity | 1/4″ | Model No | 8 1/2N |
| Minimum Capacity | 0.040″ | Style | Super Ball |
| Mount Type | Tapered | Outside Diameter | 1.5600″ |
| Key Style | K30 | Maximum Capacity mm | 6.4 mm |
| Open Length | 1.95″ |
Product Features
| Remarks | •Ball Bearing Construction Maximizes Gripping Force and Drilling Accuracy. •Jaws Center-Ground for Straightness and Alignment. •One-Piece Sleeve Eliminates Crack Between Driving Teeth Often Found in Other Designs. •Through-Hardened Sleeve Teeth Plus Hardened Nose and Keyholes Provide Outstanding Wear Resistance. •Fluted Sleeve Standard. •Each Chuck 100% Inspected for Performance and Precision. •T.I.R. 0.003″ Maximum at Half Capacity. | Country of Origin | China |
Shipping Info
Package Length
3.10000
Package Width
2.30000
Package Height
2.20000
Package Weight
0.7
