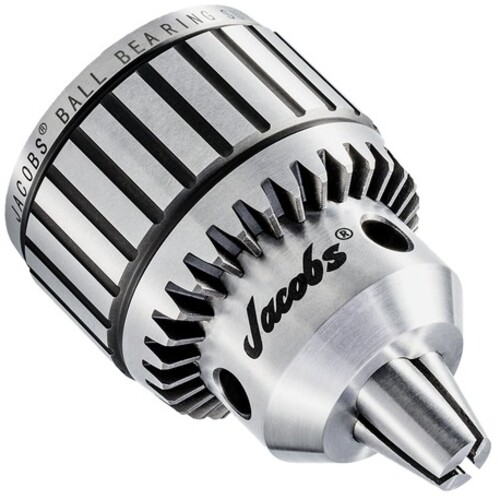

16N BALL BEARING CHUCK
| Maximum Capacity | 5/8″ | Model No | 16N |
| Minimum Capacity | 1/8″ | Style | Super Ball |
| Mount Type | Tapered | Outside Diameter | 2.6300″ |
| Key Style | K4 | Minimum Capacity mm | 3 mm |
| Open Length | 3.26″ | Maximum Capacity mm | 16 mm |
Product Features
| Remarks | •Ball Bearing Construction Maximizes Gripping Force and Drilling Accuracy. •Jaws Center-Ground for Straightness and Alignment. •One-Piece Sleeve Eliminates Crack Between Driving Teeth Often Found in Other Designs. •Through-Hardened Sleeve Teeth Plus Hardened Nose and Keyholes Provide Outstanding Wear Resistance. •Fluted Sleeve Standard. •Each Chuck 100% Inspected for Performance and Precision. •T.I.R. 0.003″ Maximum at Half Capacity. | Country of Origin | China |
Shipping Info
Package Length
4.56690
Package Width
3.85830
Package Height
3.70080
Package Weight
3.26
