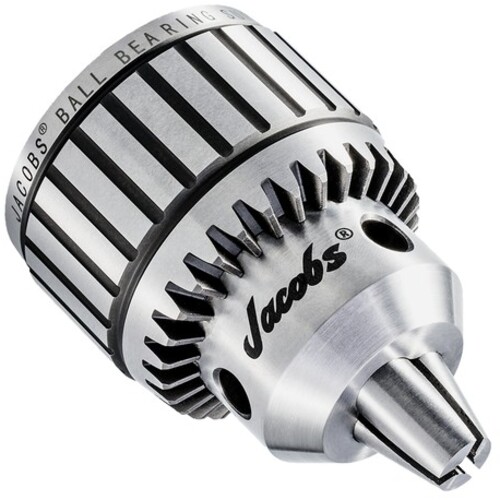

18N BALL BEARING CHUCK
| Maximum Capacity | 3/4″ | Model No | 18N |
| Minimum Capacity | 1/8″ | Style | Super Ball |
| Mount Type | Tapered | Outside Diameter | 3.0100″ |
| Key Style | K4 | Minimum Capacity mm | 3 mm |
| Open Length | 3.95″ | Maximum Capacity mm | 20 mm |
Product Features
| Remarks | •Ball Bearing Construction Maximizes Gripping Force and Drilling Accuracy. •Jaws Center-Ground for Straightness and Alignment. •One-Piece Sleeve Eliminates Crack Between Driving Teeth Often Found in Other Designs. •Through-Hardened Sleeve Teeth Plus Hardened Nose and Keyholes Provide Outstanding Wear Resistance. •Fluted Sleeve Standard. •Each Chuck 100% Inspected for Performance and Precision. •T.I.R. 0.003″ Maximum at Half Capacity. | Country of Origin | China |
Shipping Info
Package Length
4.56690
Package Width
3.93700
Package Height
3.54330
Package Weight
4.576
