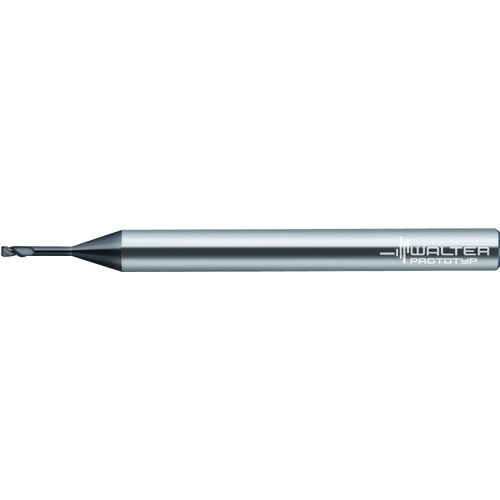

0.8mm Dia. × 8mm Max Depth 2 Flute Carbide TAX .05
H4044918–0.8–8
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.8 mm | Flute Helix Angle (FHA) | CW|30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 8 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 38 mm | Usable Length (LU) | 8 mm |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0.05 mm |
| Coating | AlTiN | Decimal Equivalent | 0.0315″ |
| Flute Count (NOF) | 2 |
Product Features
| Family Description | H4044918–0.8–8 | Country of Origin | Germany |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.013
