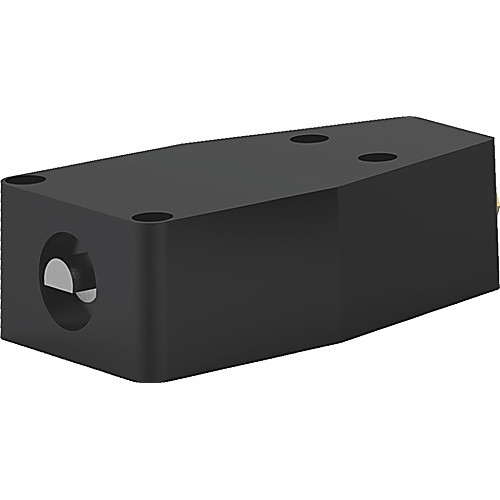

800E RETRACTOR CLAMP

| Style | Pneumatic Clamp | Spindle Size | NA |
| Type | Retracting Clamp | Width Between Mounting Base | 2.21 |
| Arm | Solid | Base Length | 4.81 |
| Height Under Clamp Arm | 0.59 | Maximum Clamping Thickness | 0.43 |
| Holding Capacity | 800 lbs | Plunger Diameter | 0.5 |
| Overall Height | 1.63 | Range | 0..43 |
| Overall Length | 5.31 | Toggle Lock Plus Lever | NO |
| model_no | 800-E | Connection | 1/4 NPT |
| Bar Style | Solid | For Use With | NA |
| Distance From Surface to Plunger | 0.59 | Accessory Fastener Included | NO |
| Mounting Diameter | 0.26 | Clasp Arm Length | 1 |
| Mounting Length | 3.13 | Bar Type | Solid |
| Mounting Width | 2.21 | Cap Diameter | NA |
| Overall Width | 2.72 | Series | Hold Down Action |
| Plunger Height | 0.59 | Clamp Arm Length | 1 |
| Plunger Travel | 0.5 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
6.75000
Package Width
3.00000
Package Height
2.00000
Package Weight
3
