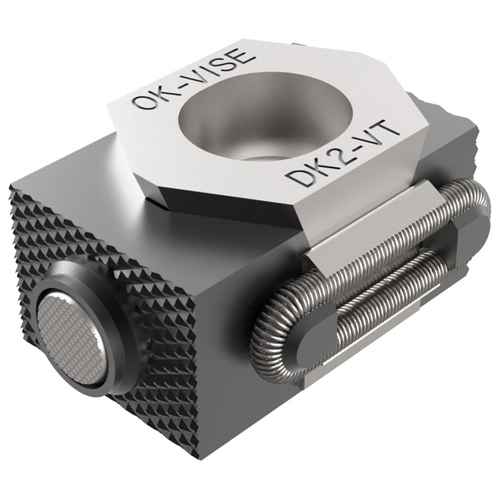

Self-Adjustable Jaw Clamp, Self-Adjustable Jaws, 145 Nm Torque, 55 kN Clamping Force, 22 mm Jaw Height, 30 mm Jaw Width
| Type | Self-Adjustable Jaw Clamp | Length Minimum | 55 mm |
| Style | Self-Adjustable Jaws | Length Optimum | 59 mm |
| Torque | 145 Nm | Total Height | 26 mm |
| Clamp Center to Jaw Face Minimum | 31 mm | Total Width | 41 mm |
| Clamp Center to Jaw Face Optimum | 32.5 mm | Weight | 0.212 kgs |
| Clamp Center to Jaw Face Maximum | 34.5 mm | Diameter of Serration Ball Gripper Screw | 10.7 mm |
| Clamping Force | 55 kN | Socket Head Screw Size | M12 × 30 |
| Jaw Height | 22 mm | Hardness of Jaws HRC X | 30-34 |
| Jaw Width | 30 mm | Hardness of Jaws HRC Y | 48-52 |
| Length Maximum | 52 mm | Series | OK-Vise Clamps |
Product Features
| Country of Origin | Finland |
