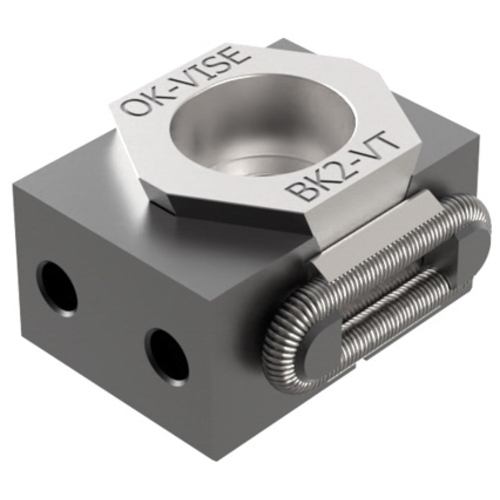

Mounting & Smooth Jaw Clamp, Machinable & Smooth Jaws, 43 Nm Torque, 22 kN Clamping Force, 15 mm Jaw Height, 21 mm Jaw Width
| Type | Mounting & Smooth Jaw Clamp | Length Optimum | 32 mm |
| Style | Machinable & Smooth Jaws | Total Height | 17.5 mm |
| Torque | 43 Nm | Total Width | 29 mm |
| Clamp Center to Jaw Face Minimum | 16.5 mm | Weight | 0.062 kgs |
| Clamp Center to Jaw Face Optimum | 17.5 mm | Mounting Length | 12 mm |
| Clamp Center to Jaw Face Maximum | 18.5 mm | Screw Size | M5 × 4 mm |
| Clamping Force | 22 kN | Socket Head Screw Size | M8 × 20 |
| Jaw Height | 15 mm | Hardness of Jaws HRC X | 30-34 |
| Jaw Width | 21 mm | Hardness of Jaws HRC Y | 48-52 |
| Length Maximum | 34 mm | Series | OK-Vise Clamps |
| Length Minimum | 30 mm |
Product Features
| Country of Origin | Finland |
