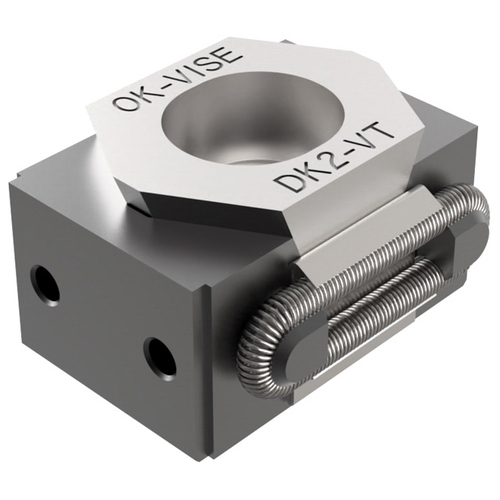

Mounting & Smooth Jaw Clamp, Mounting & Smooth Jaws, 145 Nm Torque, 55 kN Clamping Force, 22 mm Jaw Height, 30 mm Jaw Width
| Type | Mounting & Smooth Jaw Clamp | Length Optimum | 50 mm |
| Style | Mounting & Smooth Jaws | Total Height | 26 mm |
| Torque | 145 Nm | Total Width | 41 mm |
| Clamp Center to Jaw Face Minimum | 23 mm | Weight | 0.192 kgs |
| Clamp Center to Jaw Face Optimum | 24.5 mm | Mounting Length | 18 mm |
| Clamp Center to Jaw Face Maximum | 26.5 mm | Screw Size | M5 × 7 mm |
| Clamping Force | 55 kN | Socket Head Screw Size | M12 × 30 |
| Jaw Height | 22 mm | Hardness of Jaws HRC X | 30-34 |
| Jaw Width | 30 mm | Hardness of Jaws HRC Y | 48-52 |
| Length Maximum | 54 mm | Series | OK-Vise Clamps |
| Length Minimum | 47 mm |
Product Features
| Country of Origin | Finland |
