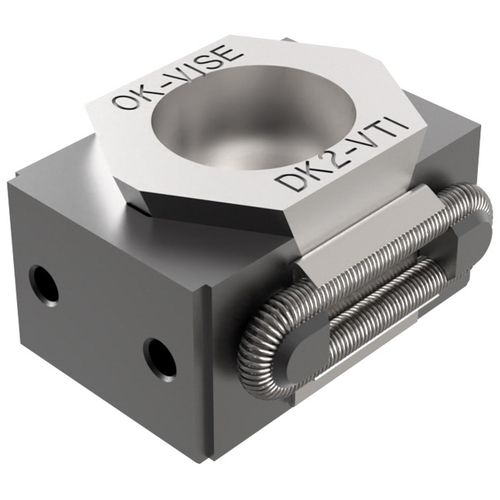

Mounting & Smooth Jaw Clamp, Machinable & Smooth Jaws, 107 ft/lbs Torque, 12,364 lbs Clamping Force, 0.86″ Jaw Height, 1.18″ Jaw Width
| Type | Mounting & Smooth Jaw Clamp | Length Minimum | 1.85″ |
| Style | Machinable & Smooth Jaws | Length Optimum | 1.97″ |
| Torque | 107 ft/lbs | Total Height | 1.01″ |
| Clamp Center to Jaw Face Minimum | 0.9″ | Total Width | 1.61″ |
| Clamp Center to Jaw Face Optimum | 0.96″ | Weight | 0.42 lbs |
| Clamp Center to Jaw Face Maximum | 1.05″ | Screw Size | M5 × 7 mm |
| Clamping Force | 12,364 lbs | Socket Head Screw Size | 1/2-13 × 1-1/4″ |
| Jaw Height | 0.86″ | Hardness of Jaws HRC X | 30-34 |
| Jaw Width | 1.18″ | Hardness of Jaws HRC Y | 48-52 |
| Length Maximum | 2.12″ | Series | OK-Vise Clamps |
Product Features
| Country of Origin | Finland |
