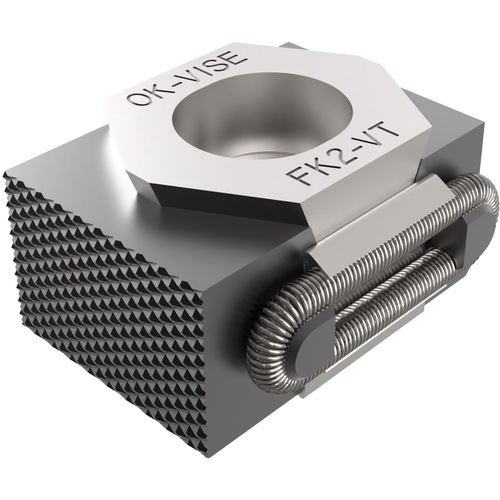

Machinable & Smooth Jaw Clamp, Machinable & Smooth Jaws, 360 Nm Torque, 100 kN Clamping Force, 29 mm Jaw Height, 42 mm Jaw Width
| Type | Machinable & Smooth Jaw Clamp | Length Minimum | 62 mm |
| Style | Machinable & Smooth Jaws | Length Optimum | 65 mm |
| Torque | 360 Nm | Total Height | 34 mm |
| Clamp Center to Jaw Face Minimum | 33.5 mm | Total Width | 56 mm |
| Clamp Center to Jaw Face Optimum | 35 mm | Weight | 0.500 kgs |
| Clamp Center to Jaw Face Maximum | 37.5 mm | Socket Head Screw Size | M16 × 40 |
| Clamping Force | 100 kN | Hardness of Jaws HRC X | 30-34 |
| Jaw Height | 29 mm | Hardness of Jaws HRC Y | 48-52 |
| Jaw Width | 42 mm | Series | OK-Vise Clamps |
| Length Maximum | 70 mm |
Product Features
| Country of Origin | Finland |
