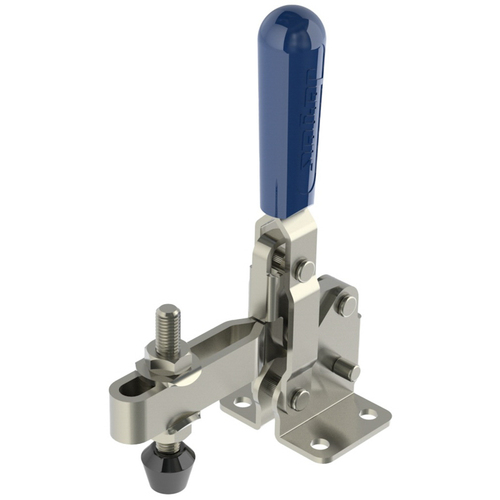

600 lbs Capacity - Adjustable U-Bar - Vertical with Adjustable U-Bar - Hold Down Action Toggle Clamp
| Style | Vertical with Adjustable U-Bar | Mounting Diameter | 0.33″ |
| Type | Hold Down Action Toggle Clamp | Mounting Length | 1.25″ |
| Arm | 3.55″ | Mounting Width | 1.78″ |
| Height Under Clamp Arm | 1.66″ | Overall Width | 2.54″ |
| Holding Capacity | 600 lbs | Spindle Size | 3/8″-16 × 3.5″ |
| Overall Height | 7.77″ | Base Length | 1.91″ |
| Overall Length | 5.69″ | Range | 2.43″ |
| Thread Size | 3/8-16 | Toggle Lock Plus Lever | No |
| Bar Style | Adjustable U-Bar | Clamp Arm Length | 3.55″ |
Product Features
| Remarks | •Specifications: •Bar Opens: 105°. •Handle Opens: 58°. •Spindle Supplied:* 3/8-16 × 3.50. •Solid Bar versions supplied with bolt retainer. | Country of Origin | India |
Shipping Info
Package Weight
1.29
