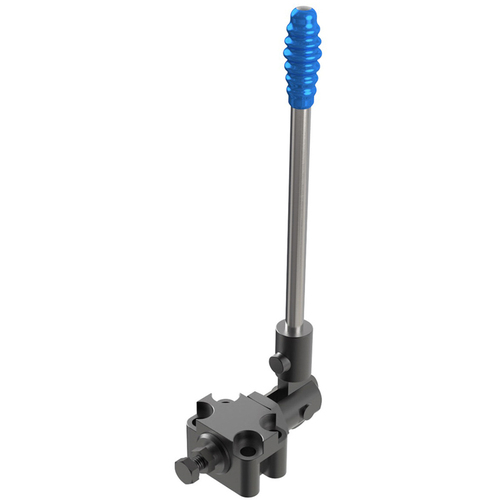

4,500 lbs Capacity - Plunger - Long Handle - Heavy Duty Cam Clamps
| Style | Magna Force Push Clamps | Bar Style | Plunger |
| Type | Heavy Duty Cam Clamps | Mounting Diameter | 0.406″ |
| Arm | 2.383″ | Mounting Length | 0.984″ |
| Height Under Clamp Arm | 0.669″ | Mounting Width | 1.968″ |
| Holding Capacity | 4,500 lbs | Overall Width | 2.677″ |
| Overall Height | 13.12″ | Plunger Travel | 0.433″ |
| Overall Length | 3.533″ | Spindle Size | M12 × 35 |
| Handle | Long Handle | Base Length | 1.693″ |
| Thread Size | M12 | Plunger Diameter | 0.63″ |
| Includes | Set screw and nuts, mounting base and locknuts | Series | Magna Force |
Product Features
| Remarks | •Operating clamping force: 4,500 lbs. •Weight: 4.4 lbs. •Supplied complete with: Set screw & nuts, Mounting base & locknuts. •Nominal holding force: 6,740 lbs. | Country of Origin | United Kingdom |
Shipping Info
Package Weight
4.09
