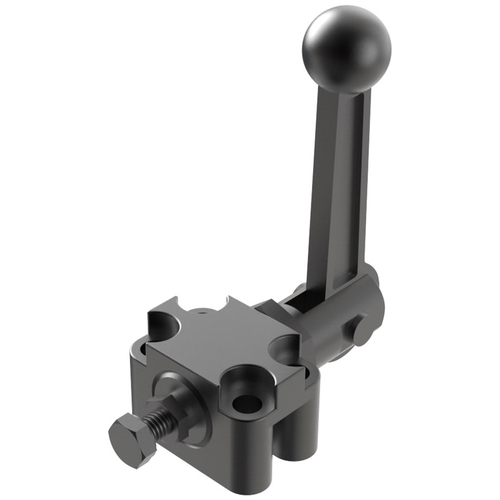

1,350 lbs (Hand), 2,700 lbs (Mallet) Capacity - Plunger - Magna Force Push Clamps - Heavy Duty Cam Clamps
| Style | Magna Force Push Clamps | Mounting Diameter | 0.25″ |
| Type | Heavy Duty Cam Clamps | Mounting Length | 0.591″ |
| Arm | 1.349″ | Mounting Width | 1.102″ |
| Height Under Clamp Arm | 0.374″ | Overall Width | 1.535″ |
| Holding Capacity | 1,350 lbs (Hand), 2,700 lbs (Mallet) | Plunger Travel | 0.205″ |
| Overall Height | 3.581″ | Spindle Size | M6 × 19 |
| Overall Length | 2.25″ | Base Length | 1.024″ |
| Thread Size | M6 | Plunger Diameter | 0.354″ |
| Includes | Set screw and nuts, mounting base and locknuts | Series | Magna Force |
| Bar Style | Plunger |
Product Features
| Remarks | •Operating clamping force: 3,370 lbs (mallet applied), 1,350 lbs (hand applied). •Weight: 0.6 lbs. •Supplied complete with: Set screw & nuts, Mounting base and locknuts. | Country of Origin | United Kingdom |
Shipping Info
Package Weight
0.61
