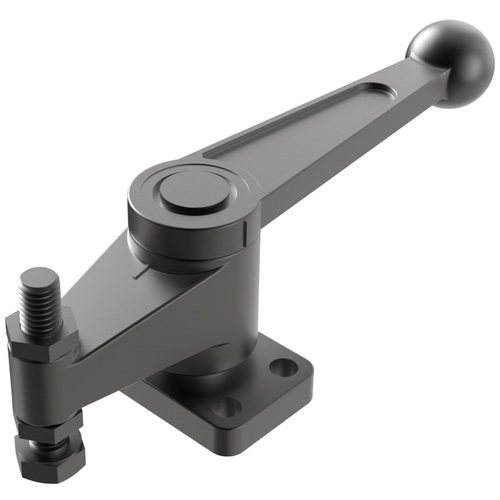

1,350 lbs (Hand), 2,700 lbs (Mallet) Capacity - Solid - Swing Counter Clockwise - Heavy Duty Cam Clamps

| Style | Magna Force Swing Clamps | Bar Style | Solid |
| Type | Heavy Duty Cam Clamps | Mounting Diameter | 0.327″ |
| Arm | 2.165″ | Mounting Length | 0.984″ |
| Height Under Clamp Arm | 1.024″ | Mounting Width | 1.969″ |
| Holding Capacity | 1,350 lbs (Hand), 2,700 lbs (Mallet) | Overall Width | 2.559″ |
| Overall Height | 3.031″ | Plunger Travel | 55 mm |
| Overall Length | 7.874″ | Spindle Size | M6 × 55 |
| Handle | Swing Counter Clockwise | Base Length | 1.575″ |
| Thread Size | M6 | Series | Magna Force |
| Includes | Set screw and nuts |
Product Features
| Remarks | •HDC2600S (Clockwise).
•HDC2600SB (Counter Clockwise).
•Operating clamping force: 1,350 lbs (hand applied), 2,700 lbs (mallet applied).
•Weight: 2 lbs.
•Supplied complete with: Setscrew & nuts. | Country of Origin | United Kingdom |
Shipping Info
Package Weight
2.15
