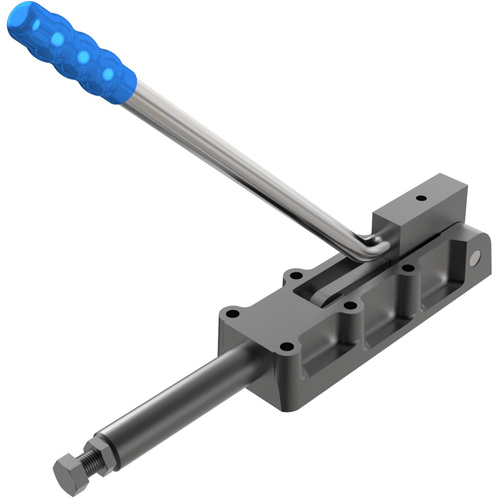

11,013 lbs Capacity - Plunger - Long Handle - Heavy Duty Cam Clamps
| Style | Long Handle Push-Pull | Mounting Diameter | 13/32″ |
| Type | Heavy Duty Cam Clamps | Mounting Length | 2.75″ |
| Arm | 5-7/16″ | Mounting Width | 2.25″ |
| Height Under Clamp Arm | 0.50375″ | Overall Width | 3.3125″ |
| Holding Capacity | 11,013 lbs | Plunger Height | 1.09375″ |
| Overall Height | 4.875″ | Plunger Travel | 60 mm |
| Overall Length | 15-3/8″ | Spindle Size | M16 × 60 |
| Handle | Long Handle | Base Length | 10″ |
| Thread Size | M16 | Plunger Diameter | 1.18″ |
| Includes | Setscrew and Nut | Toggle Lock Plus Lever | Yes |
| Bar Style | Plunger |
Product Features
| Remarks | •Plunger: Locks at both extended & retracted ends of the stroke. •Base: Body mounting. •Nominal Holding Force: 11,013 lbs. •Weight: 15 lbs 6 oz. •Supplied complete with: Setscrew & nut. | Country of Origin | United Kingdom |
Shipping Info
Package Weight
0.999
