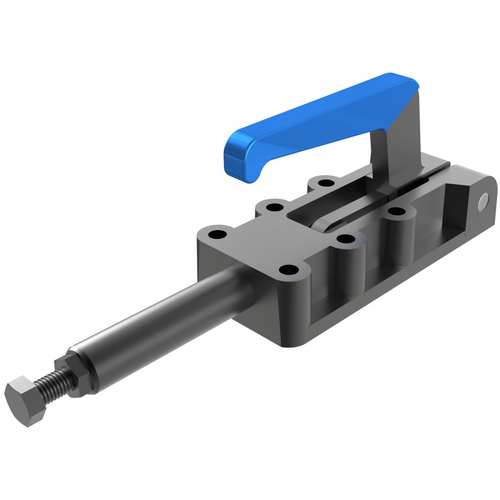

5,507 lbs Capacity - Plunger - Long Handle Push-Pull - Heavy Duty Cam Clamps
| Style | Long Handle Push-Pull | Mounting Diameter | 13/32″ |
| Type | Heavy Duty Cam Clamps | Mounting Length | 1.75″ |
| Arm | 4″ | Mounting Width | 2.125″ |
| Height Under Clamp Arm | 0.385″ | Overall Width | 3.125″ |
| Holding Capacity | 5,507 lbs | Plunger Height | 0.875″ |
| Overall Height | 4.25″ | Plunger Travel | 60 mm |
| Overall Length | 11-11/16″ | Spindle Size | M12 × 60 |
| Thread Size | M12 | Base Length | 7.75″ |
| Includes | Setscrew and Nut | Plunger Diameter | 0.98″ |
| Bar Style | Plunger | Toggle Lock Plus Lever | Yes |
Product Features
| Remarks | •Plunger: Locks at both extended & retracted ends of the stroke. •Base: Body mounting. •Nominal Holding Force: 5,507 lbs. •Weight: 8 lbs. •Supplied complete with: Setscrew & nut. | Country of Origin | United Kingdom |
Shipping Info
Package Weight
7.74
