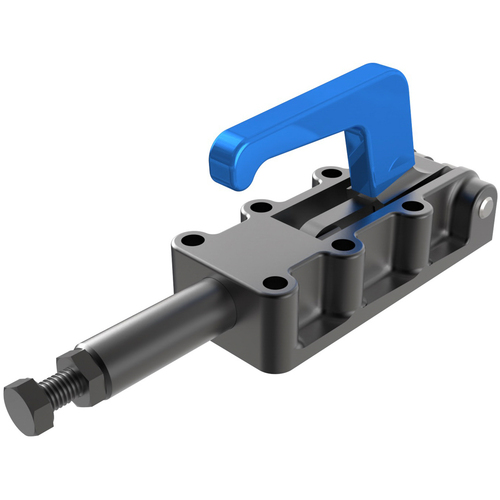

72202 HD PUSH-PULL CLAMP
| Style | Long Handle Push-Pull | Mounting Diameter | 21/64″ |
| Type | Heavy Duty Cam Clamps | Mounting Length | 1.375″-1.625″ |
| Arm | 2.156″ | Mounting Width | 1.3125″ |
| Height Under Clamp Arm | 0.2975″ | Overall Width | 2.125″ |
| Holding Capacity | 2,643 lbs | Plunger Height | 0.6875″ |
| Overall Height | 3.5″ | Plunger Travel | 40 mm |
| Overall Length | 7-1/2″ | Spindle Size | M10 × 40 |
| Thread Size | M10 | Base Length | 5.31″ |
| Includes | Setscrew and Nut | Plunger Diameter | 0.78″ |
| Bar Style | Plunger | Toggle Lock Plus Lever | Yes |
Product Features
| Remarks | •Plunger: Locks at both extended & retracted ends of the stroke. •Base: Body mounting. •Nominal Holding Force: 2,643 lbs. •Weight: 3 lbs. •Supplied complete with: Setscrew & nut. | Country of Origin | United Kingdom |
Shipping Info
Package Weight
3.2
