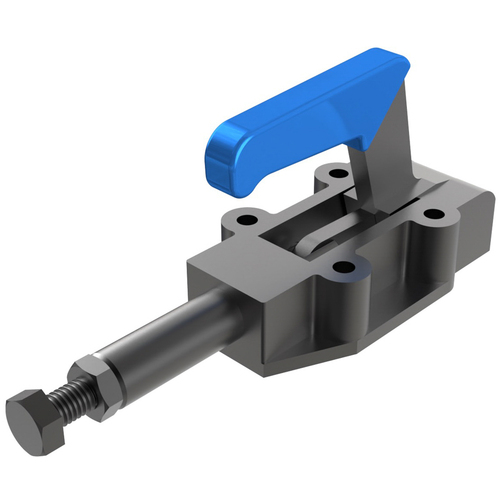

1,322 lbs Capacity - Plunger - Long Handle Push-Pull - Heavy Duty Cam Clamps
| Style | Long Handle Push-Pull | Mounting Diameter | 0.219″ |
| Type | Heavy Duty Cam Clamps | Mounting Length | 1.4375″ |
| Arm | 1.25″ | Mounting Width | 1.3125″ |
| Height Under Clamp Arm | 0.194″ | Overall Width | 1.75″ |
| Holding Capacity | 1,322 lbs | Plunger Height | 0.469″ |
| Overall Height | 2.625″ | Plunger Travel | 30 mm |
| Overall Length | 5″ | Spindle Size | M8 × 30 |
| Thread Size | M8 | Base Length | 3.5″ |
| Includes | Setscrew and Nut | Plunger Diameter | 0.55″ |
| Bar Style | Plunger | Toggle Lock Plus Lever | Yes |
Product Features
| Remarks | •Plunger: Locks at both extended & retracted ends of the stroke. •Base: Body mounting. •Nominal Holding Force: 1,322 lbs. •Weight: 1 lb. •Supplied complete with: Setscrew & nut. | Country of Origin | United Kingdom |
Shipping Info
Package Weight
1.05
