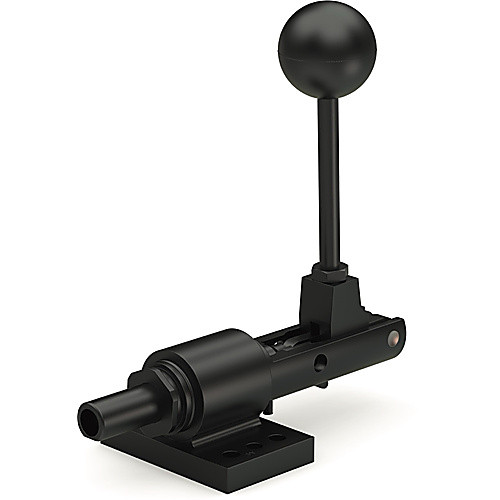

675–1MBPLS HEAVY DUTY PLUNGER CLAMP
| Style | Manual Toggle Clamp | Mounting Width | 3.5 |
| Type | Straight Line Action Clamp | Overall Width | 3.5 |
| Arm | Round Plunger | Plunger Height | 1.37 |
| Height Under Clamp Arm | 1.37 | Plunger Travel | 1.1 |
| Holding Capacity | 2400 lbs | Spindle Size | M12 |
| Overall Height | 8.11 | Width Between Mounting Base | 2.6 |
| Overall Length | 7.68 | Base Length | 2.24 |
| Handle | Ball | Plunger Diameter | 0.75 |
| Spindle | Not Included | Toggle Lock Plus Lever | NO |
| Thread Size | M12 | For Use With | NA |
| model_no | 675-1MBPLS | Accessory Fastener Included | NO |
| Includes | Mounting Base | Clasp Arm Length | NA |
| Bar Style | Fixed | Bar Type | Fixed |
| Distance From Surface to Plunger | 1.37 | Cap Diameter | NA |
| Mounting Diameter | 0.33 | Series | Straight Line Action |
| Mounting Length | 2.24 | Clamp Arm Length | NA |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
17.50000
Package Width
4.00000
Package Height
3.00000
Package Weight
4.47
