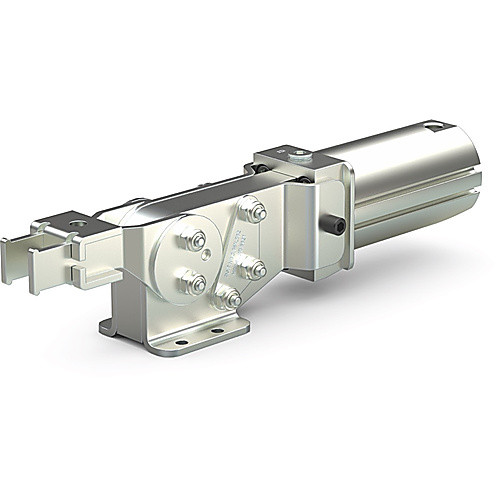

Horizontal Pneumatic Cylinder - 390 lbs. Holding Capacity, Bar Style U Shape
| Style | Enclosed Pneumatic Hold Down Clamp | Bar Style | U-Shape |
| Type | Enclosed Pneumatic Clamp | Mounting Diameter | 0.21″ |
| Arm | 1.88″ | Mounting Length | 0.79″ |
| Height Under Clamp Arm | 1.56″ | Mounting Width | 1.50″ |
| Holding Capacity | 390 lbs | Overall Width | 1.88″ |
| Overall Height | 2.40″ | Spindle Size | M6 or 1/4 |
| Overall Length | 9.86″ | Base Length | 1.73″ |
| Thread Size | M6 or 1/4 | Maximum Clamping Thickness | 1.56″ |
| model_no | 8021 | Toggle Lock Plus Lever | No |
| Includes | 8021122 Flanged Washer | Clamp Arm Length | 2.25″ |
Product Features
| Remarks | •Designed for dirty environments such as spot or MIG welding •Comes with magnetic ring for sensing •The non-pivoting cylinder can be hard-piped into a fixture | Country of Origin | USA |
Shipping Info
Package Length
11.80000
Package Width
3.50000
Package Height
6.70000
Package Weight
2.7
