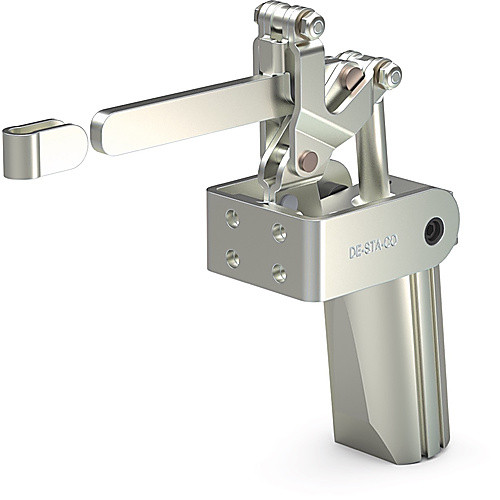

Vertical Pneumatic Cylinder - 400 lbs Holding Capacity, Bar Style Solid
| Style | Pneumatic Hold Down Clamp | Bar Style | Solid |
| Type | Pneumatic Clamp | Mounting Diameter | 0.27″ |
| Arm | 2.44″ | Mounting Length | 0.63″ |
| Height Under Clamp Arm | 2.69″ | Mounting Width | 1.00″ |
| Holding Capacity | 450 lbs | Overall Width | 2.44″ |
| Overall Height | 7.51″ | Spindle Size | M8 or 5/16 |
| Overall Length | 6.97″ | Base Length | 1.38″ |
| Thread Size | M8 or 5/16 | Maximum Clamping Thickness | 2.69″ |
| model_no | 817-S | Toggle Lock Plus Lever | No |
| Includes | Bolt Retainer | Clamp Arm Length | 3.04″ |
Product Features
| Remarks | •Used with rotary indexing tables and injection molding operations •All 3 models can be mounted on the sides of a fixture •The 817 & 827 can also be top mounted. | Country of Origin | USA |
Shipping Info
Package Length
11.80000
Package Width
6.80000
Package Height
3.30000
Package Weight
2.6
