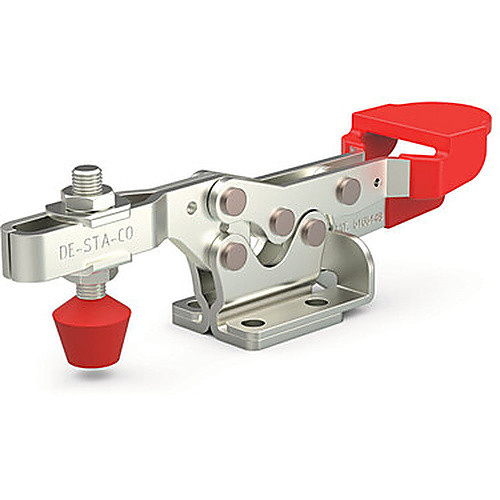

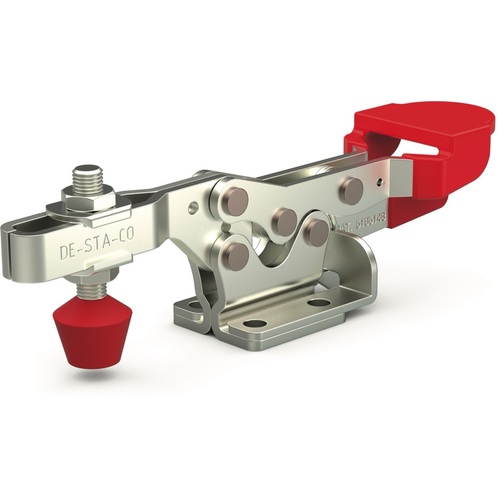

Model 225-UR - Horizontal Straight Line U-Shape Style; 500 lbs Holding Capacity - Toggle Clamp

| Style | Horizontal with Release Lever Catch | Mounting Diameter | 0.26″ |
| Type | Toggle Clamp | Mounting Length | 1″ |
| Arm | 1.37″ | Mounting Width | .88″ |
| Height Under Clamp Arm | 1.31″ | Overall Width | 1.57″ |
| Holding Capacity | 500 lbs | Spindle Size | M8 or 5/16″ |
| Overall Height | 1.89″ | Base Length | 1.50″ |
| Overall Length | 7.09″ | Maximum Clamping Thickness | 1.31″ |
| Spindle | .55″ | Toggle Lock Plus Lever | Yes |
| Thread Size | M8 | For Use With | 800, 8000 series |
| model_no | 225-UR | Bar Type | Flanged |
| Includes | 92 | Clamp Arm Length | 2.69″ |
| Bar Style | U-Shape |
Product Features
| Remarks | •Used in drilling, testing, gluing and other processing applications.
•Suitable for use in welding, fixtures, in gauge manufacturing as well as in the woodworking industry. | Country of Origin | USA |
Shipping Info
Package Length
5.80000
Package Width
1.40000
Package Height
1.30000
Package Weight
0.7
