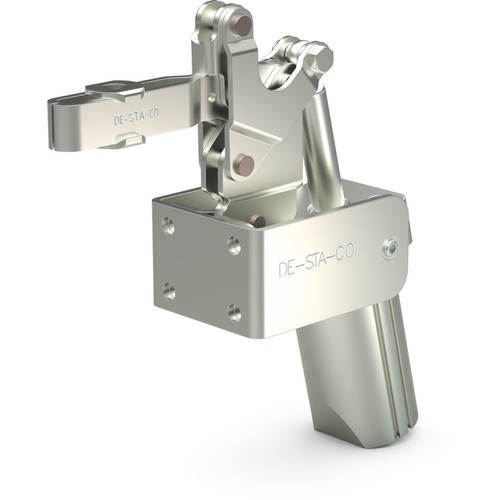

#827-U U-Shape Bar Style - 600 lbs Holding Capacity - Pneumatic Cylinder Vertical
| Style | Pneumatic Hold Down Clamp | Bar Style | U-Shape |
| Type | Pneumatic Clamp | Mounting Diameter | 0.33″ |
| Arm | 3.08″ | Mounting Length | 1.25″ |
| Height Under Clamp Arm | 3.89″ | Mounting Width | 1.75″ |
| Holding Capacity | 600 lbs | Overall Width | 3.08″ |
| Overall Height | 9.04″ | Spindle Size | M10 or 3/8 |
| Overall Length | 8.61″ | Base Length | 2.57″ |
| Thread Size | M10 or 3/8 | Maximum Clamping Thickness | 3.89″ |
| model_no | 827-U | Toggle Lock Plus Lever | No |
| Includes | 507107 Flanged Washer | Clamp Arm Length | 3.27″ |
Product Features
| Remarks | •Used with rotary indexing tables and injection molding operations •All 3 models can be mounted on the sides of a fixture •The 817 & 827 can also be top mounted. | Country of Origin | USA |
Shipping Info
Package Weight
5
