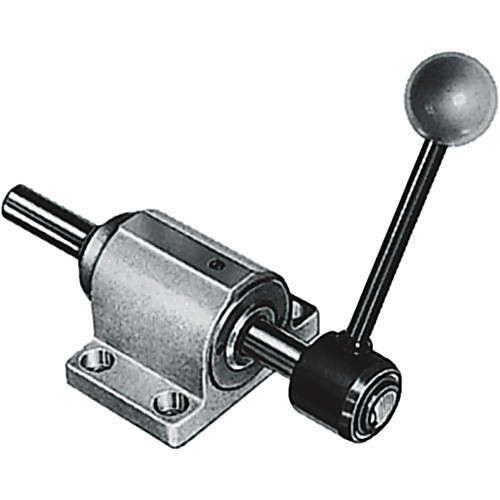

FL-122/45 CLAMP

| Style | Variable Stroke Clamp | Plunger Height | 20 |
| Type | Straight Line Action Clamp | Plunger Travel | 40 |
| Arm | Round Plunger | Spindle Size | M6 |
| Height Under Clamp Arm | 20 | Base Length | 44 |
| Holding Capacity | 675 lbs | Maximum Clamping Thickness | 40 |
| Overall Height | 68 | Plunger Diameter | 12 |
| Overall Length | 153 | Range | 0-40 |
| Handle | Hand Knob | Toggle Lock Plus Lever | NO |
| Spindle | Not Included | For Use With | NA |
| Thread Size | M6 | Accessory Fastener Included | NO |
| model_no | FL-122-45 | Clasp Arm Length | NA |
| Distance From Surface to Plunger | 20 | Bar Type | Fixed |
| Mounting Diameter | 6.5 | Cap Diameter | NA |
| Mounting Length | 52 | Series | Straight Line Action |
| Overall Width | 44 | Clamp Arm Length | NA |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.2
