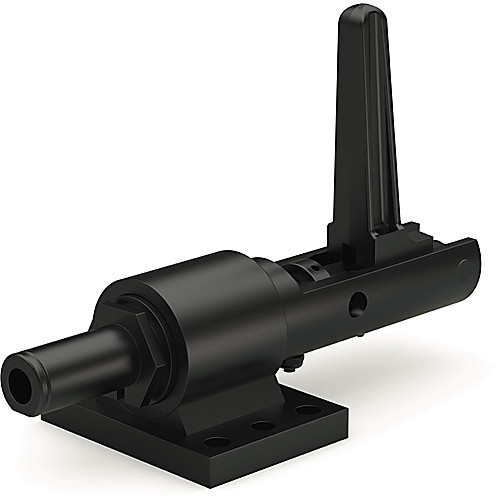

695–1MBPLS HEAVY DUTY PLUNGER CLAMP
| Style | Manual Toggle Clamp | Mounting Width | 4 |
| Type | Straight Line Action Clamp | Overall Width | 4 |
| Arm | Round Plunger | Plunger Height | 1.63 |
| Height Under Clamp Arm | 1.63 | Plunger Travel | 1.5 |
| Holding Capacity | 5000 lbs | Spindle Size | M16 |
| Overall Height | 6.37 | Width Between Mounting Base | 3.23 |
| Overall Length | 9.45 | Base Length | 3 |
| Handle | Forged | Plunger Diameter | 1 |
| Spindle | Not Included | Toggle Lock Plus Lever | NO |
| Thread Size | M16 | For Use With | NA |
| model_no | 695-1MBPLS | Accessory Fastener Included | NO |
| Includes | Mounting Base | Clasp Arm Length | NA |
| Bar Style | Fixed | Bar Type | Fixed |
| Distance From Surface to Plunger | 1.63 | Cap Diameter | NA |
| Mounting Diameter | 0.41 | Series | Straight Line Action |
| Mounting Length | 3 | Clamp Arm Length | NA |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
7.2
