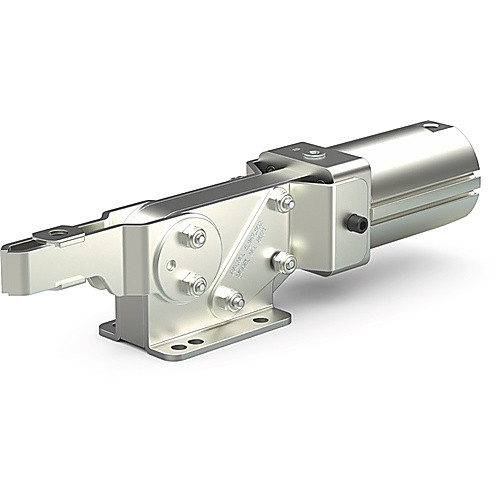

Toggle Clamp - Model 8071 Pneumatic Power U-Shape Style; 450 lbs Holding Capacity
| Style | Pneumatic Hold Down Clamp | Mounting Diameter | 0.28″ |
| Type | Enclosed Pneumatic Clamp | Mounting Length | 1.97″ |
| Arm | 2.12″ | Mounting Width | 1.56″ |
| Height Under Clamp Arm | 1.65″ | Overall Width | 2.12″ |
| Holding Capacity | 450 lbs | Spindle Size | M8 or 5/16″ |
| Overall Height | 2.63″ | Base Length | 2.75″ |
| Overall Length | 10.74″ | Maximum Clamping Thickness | 1.65″ |
| Thread Size | M8 or 5/16″ | Toggle Lock Plus Lever | No |
| model_no | 8071 | Clasp Arm Length | 2.75″ |
| Includes | 507107 Flanged Washer | Clamp Arm Length | 2.72″ |
| Bar Style | U-Shape |
Product Features
| Remarks | •Pneumatic Cylinder Horizontal •Designed for dirty environments such as spot or MIG welding •Comes with magnetic ring for sensing •The non-pivoting cylinder can be hard-piped into a fixture | Country of Origin | USA |
Shipping Info
Package Weight
2
