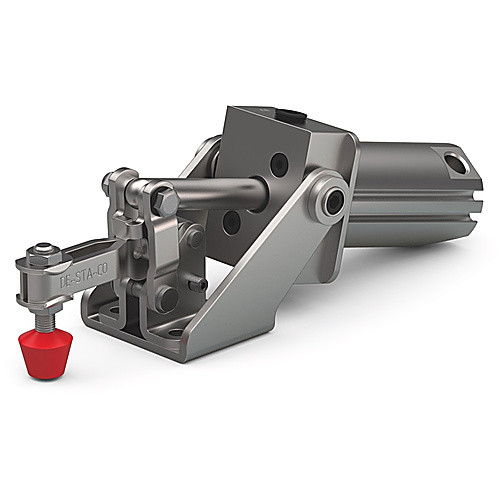

Toggle Clamp - Model 802-U Pneumatic Power U-Shape Style; 200 lbs Holding Capacity
| Style | Pneumatic Hold Down Clamp | Mounting Diameter | 0.22″ |
| Type | Pneumatic Clamp | Mounting Length | .50″ |
| Arm | 1.93″ | Mounting Width | 1.06″ |
| Height Under Clamp Arm | 1.06″ | Overall Width | 1.93″ |
| Holding Capacity | 200 lbs | Spindle Size | M6 or 1/4″ |
| Overall Height | 2.55″ | Base Length | 1.50″ |
| Overall Length | 7.69″ | Maximum Clamping Thickness | 1.06″ |
| Spindle | .47″ | Toggle Lock Plus Lever | No |
| Thread Size | M6 | Clasp Arm Length | 1.72″ |
| model_no | 802-U | Bar Type | Flanged |
| Includes | 202208-M Spindle | Clamp Arm Length | 1.73″ |
| Bar Style | U-Shape |
Product Features
| Remarks | •Pneumatic Cylinder Horizontal •Designed for dirty environments such as spot or MIG welding •Comes with magnetic ring for sensing •The non-pivoting cylinder can be hard-piped into a fixture | Country of Origin | USA |
Shipping Info
Package Length
9.70000
Package Width
4.00000
Package Height
3.70000
Package Weight
1.5
