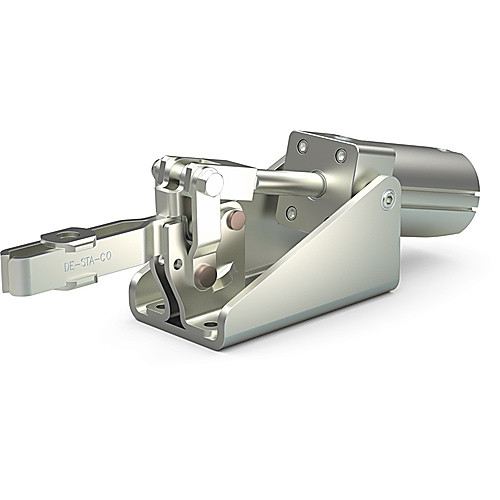

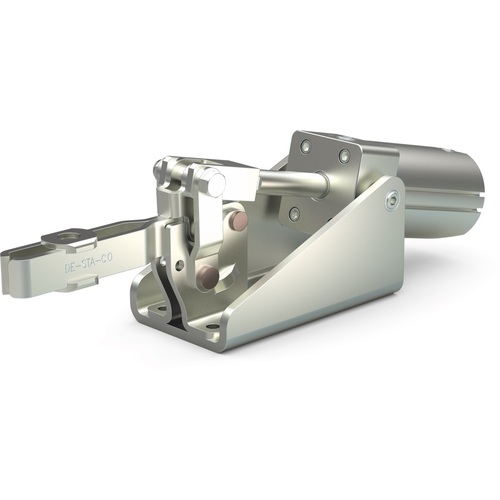

Toggle Clamp - Model 847-U Pneumatic Power U-Shape Style; 800 lbs Holding Capacity
| Style | Pneumatic Hold Down Clamp | Mounting Diameter | 0.34″ |
| Type | Pneumatic Clamp | Mounting Length | 1.25″ |
| Arm | 3.56″ | Mounting Width | 1.78″ |
| Height Under Clamp Arm | 2.25″ | Overall Width | 3.56″ |
| Holding Capacity | 1000 lbs | Spindle Size | M12 or 1/2″ |
| Overall Height | 4.40″ | Base Length | 6.22″ |
| Overall Length | 15.25″ | Maximum Clamping Thickness | 2.25″ |
| Thread Size | M12 or 1/2″ | Toggle Lock Plus Lever | No |
| model_no | 847-U | Clasp Arm Length | 4.85″ |
| Includes | 247109 Flanged Washer | Clamp Arm Length | 4.87″ |
| Bar Style | U-Shape |
Product Features
| Remarks | •Pneumatic Cylinder Horizontal •Designed for dirty environments such as spot or MIG welding •Comes with magnetic ring for sensing •The non-pivoting cylinder can be hard-piped into a fixture | Country of Origin | USA |
Shipping Info
Package Length
12.30000
Package Width
8.30000
Package Height
6.30000
Package Weight
8.6
