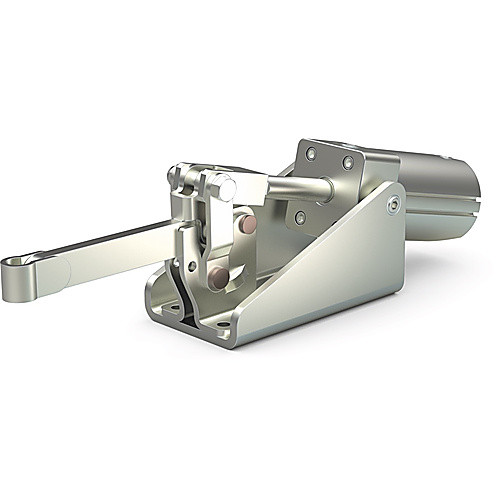

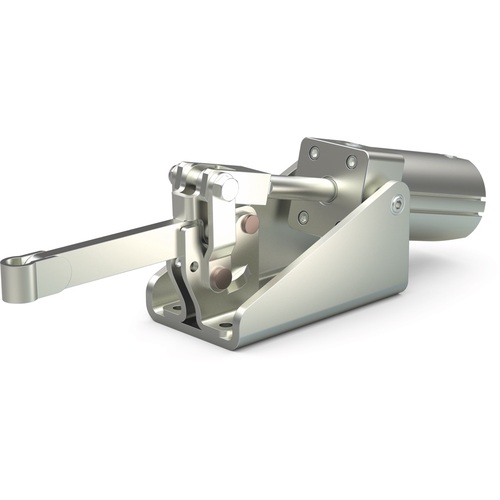

Toggle Clamp - Model 847-S Pneumatic Power Solid Style; 1000 lbs Holding Capacity

| Style | Pneumatic Hold Down Clamp | Mounting Diameter | 0.34″ |
| Type | Pneumatic Clamp | Mounting Length | 1.25″ |
| Arm | 3.56″ | Mounting Width | 1.78″ |
| Height Under Clamp Arm | 2.25″ | Overall Width | 3.56″ |
| Holding Capacity | 1000 lbs | Spindle Size | M12 or 1/2″ |
| Overall Height | 4.40″ | Base Length | 6.22″ |
| Overall Length | 15.25″ | Maximum Clamping Thickness | 2.25″ |
| Thread Size | M12 or 1/2″ | Toggle Lock Plus Lever | No |
| model_no | 847-S | Clasp Arm Length | 4.85″ |
| Includes | 247110 Bolt Retainer | Clamp Arm Length | 4.87″ |
| Bar Style | Solid |
Product Features
| Remarks | •Pneumatic Cylinder Horizontal
•Designed for dirty environments such as spot or MIG welding
•Comes with magnetic ring for sensing
•The non-pivoting cylinder can be hard-piped into a fixture | Country of Origin | USA |
Shipping Info
Package Length
12.36220
Package Width
5.82680
Package Height
7.08660
Package Weight
8.5
