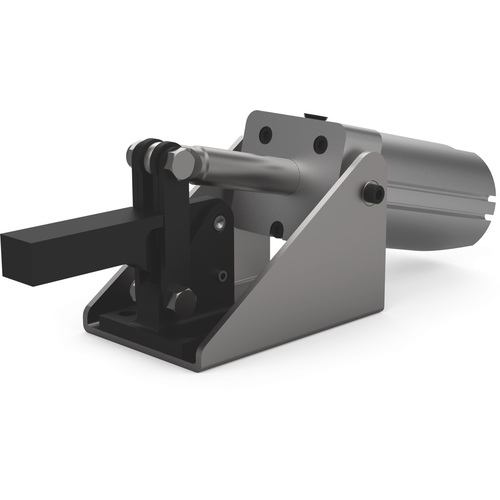

Toggle Clamp - Model 846 Pneumatic Power Solid Style; 750 lbs Holding Capacity
| Style | Pneumatic Hold Down Clamp | Mounting Diameter | 0.30″ |
| Type | Pneumatic Clamp | Mounting Length | 1″ |
| Arm | 2.87″ | Mounting Width | 1.50″ |
| Height Under Clamp Arm | 1.61″ | Overall Width | 2.87″ |
| Holding Capacity | 750 lbs | Spindle Size | M8 or 5/16″ |
| Overall Height | 3.30″ | Base Length | 4.22″ |
| Overall Length | 10.33″ | Maximum Clamping Thickness | 1.61″ |
| Thread Size | M8 or 5/16″ | Toggle Lock Plus Lever | No |
| model_no | 846 | Clasp Arm Length | 2.13″ |
| Includes | 97 | Clamp Arm Length | 2.19″ |
| Bar Style | Solid |
Product Features
| Remarks | •Pneumatic Cylinder Horizontal •Designed for dirty environments such as spot or MIG welding •Comes with magnetic ring for sensing •The non-pivoting cylinder can be hard-piped into a fixture | Country of Origin | USA |
Shipping Info
Package Weight
4
