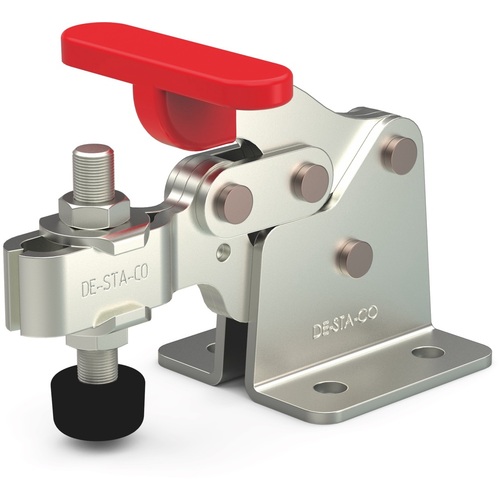

Toggle Clamp - Model 309-U Horizontal Hold Down U-Shape Style; 750 lbs Holding Capacity
| Style | Horizontal Handle Hold Down | Bar Style | U-Shape |
| Type | Toggle Clamp | Mounting Diameter | 0.33″ |
| Arm | 2.47″ | Mounting Length | 1.38″ |
| Height Under Clamp Arm | 1.31″ | Mounting Width | 1.50″ |
| Holding Capacity | 750 lbs | Overall Width | 2.47″ |
| Overall Height | 3.53″ | Spindle Size | M10 or 3/8″ |
| Overall Length | 5.19″ | Base Length | 2.52″ |
| Spindle | .88″ | Maximum Clamping Thickness | 1.31″ |
| Thread Size | M10 | Toggle Lock Plus Lever | No |
| model_no | 309-U | Bar Type | Flanged |
| Includes | 90 | Clamp Arm Length | 2.68″ |
Product Features
| Remarks | •Used in drilling, testing, gluing and other processing applications. •Suitable for use in welding, fixtures, in gauge manufacturing as well as in the woodworking industry. | Country of Origin | USA |
Shipping Info
Package Length
6.00000
Package Width
4.50000
Package Height
4.00000
Package Weight
1.3
