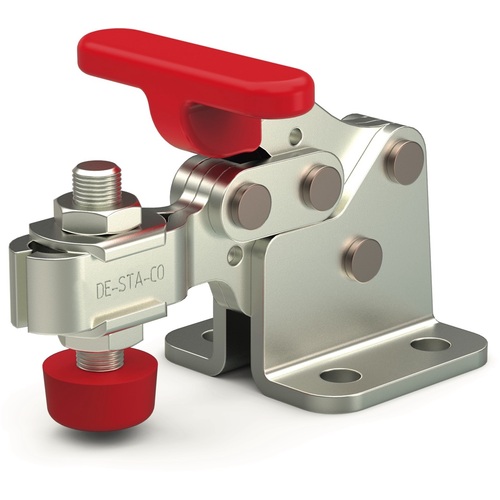

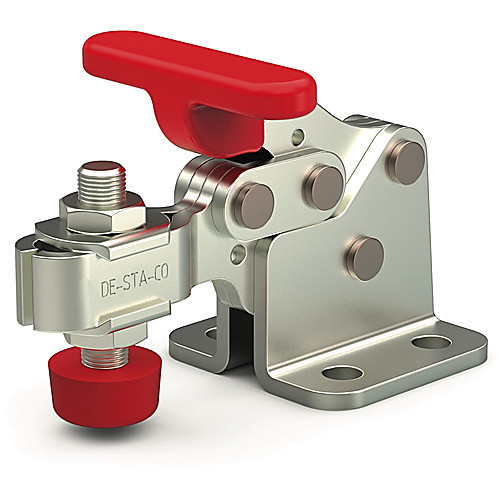

Toggle Clamp - Model 307-U Horizontal Hold Down U-Shape Style; 350 lbs Holding Capacity
| Style | Horizontal Handle Hold Down | Bar Style | U-Shape |
| Type | Toggle Clamp | Mounting Diameter | 0.28″ |
| Arm | 1.80″ | Mounting Length | .91″ |
| Height Under Clamp Arm | .89″ | Mounting Width | 1.14″ |
| Holding Capacity | 350 lbs | Overall Width | 1.80″ |
| Overall Height | 2.36″ | Spindle Size | M8 or 5/16″ |
| Overall Length | 3.61″ | Base Length | 1.72″ |
| Spindle | .75″ | Maximum Clamping Thickness | .89″ |
| Thread Size | M8 | Toggle Lock Plus Lever | No |
| model_no | 307-U | Bar Type | Flanged |
| Includes | 92° | Clamp Arm Length | 1.89″ |
Product Features
| Remarks | •Used in drilling, testing, gluing and other processing applications. •Suitable for use in welding, fixtures, in gauge manufacturing as well as in the woodworking industry. | Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
3.00000
Package Height
3.00000
Package Weight
0.55
