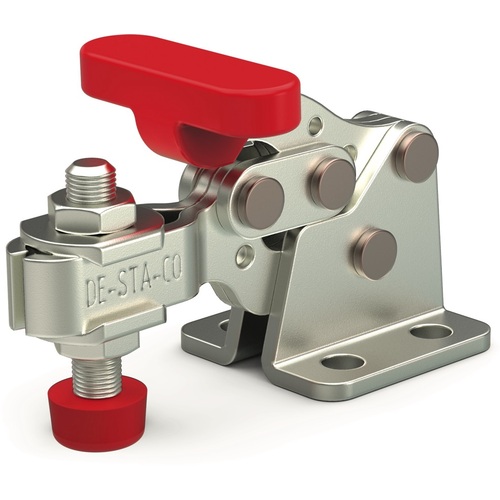

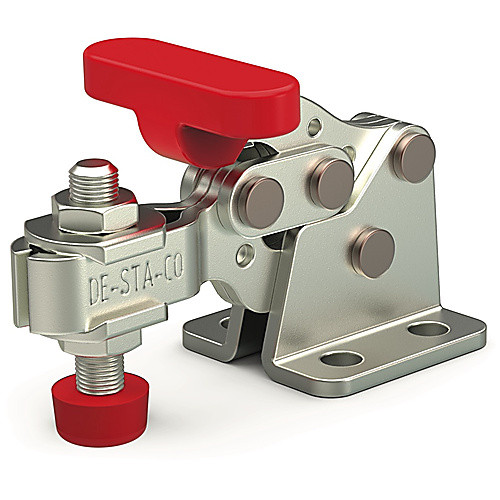

305-U HOLD DOWN ACTION
| Style | Horizontal Handle Hold Down | Bar Style | U-Shape |
| Type | Toggle Clamp | Mounting Diameter | 0.18″ |
| Arm | 1.02″ | Mounting Length | .53″ |
| Height Under Clamp Arm | .48″ | Mounting Width | .63″ |
| Holding Capacity | 150 lbs | Overall Width | 1.02″ |
| Overall Height | 1.43″ | Spindle Size | M5 or 10/32″ |
| Overall Length | 2.21″ | Base Length | 1.04″ |
| Spindle | .39″ | Maximum Clamping Thickness | .48″ |
| Thread Size | M5 | Toggle Lock Plus Lever | No |
| model_no | 305-U | Bar Type | Flanged |
| Includes | 90 | Clamp Arm Length | 1.19″ |
Product Features
| Remarks | •Used in drilling, testing, gluing and other processing applications. •Suitable for use in welding, fixtures, in gauge manufacturing as well as in the woodworking industry. | Country of Origin | Thailand |
Shipping Info
Package Length
5.25000
Package Width
3.25000
Package Height
1.02000
Package Weight
0.15
