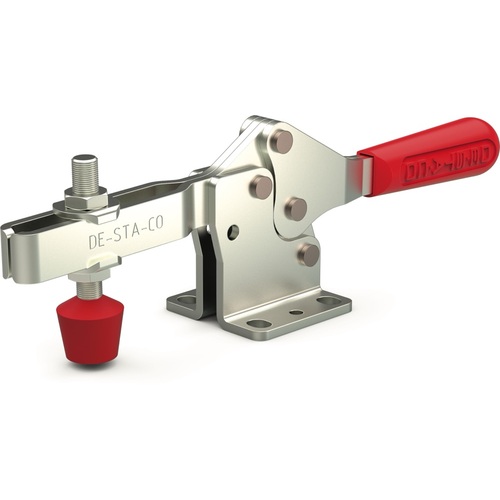

237-U HOLD DOWN ACTION

| Style | Horizontal Handle Hold Down | Bar Style | U-Shape |
| Type | Toggle Clamp | Mounting Diameter | 0.35″ |
| Arm | 2.28″ | Mounting Length | 1.61″ |
| Height Under Clamp Arm | 1.75″ | Mounting Width | 1.69″ |
| Holding Capacity | 750 lbs | Overall Width | 2.28″ |
| Overall Height | 3.18″ | Spindle Size | M10 or 3/8″ |
| Overall Length | 11.02″ | Base Length | 2.24″ |
| Spindle | .78″ | Maximum Clamping Thickness | 1.75″ |
| Thread Size | M10 | Toggle Lock Plus Lever | No |
| model_no | 237-U | Bar Type | Flanged |
| Includes | 93 | Clamp Arm Length | 3.98″ |
Product Features
| Remarks | •Used in drilling, testing, gluing and other processing applications.
•Suitable for use in welding, fixtures, in gauge manufacturing as well as in the woodworking industry. | Country of Origin | USA |
Shipping Info
Package Length
13.00000
Package Width
8.75000
Package Height
2.25000
Package Weight
1.75
