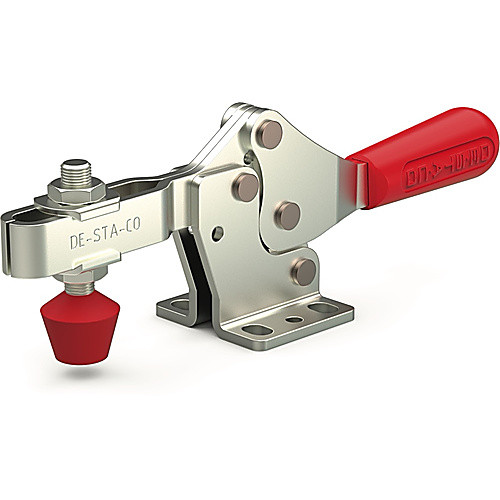

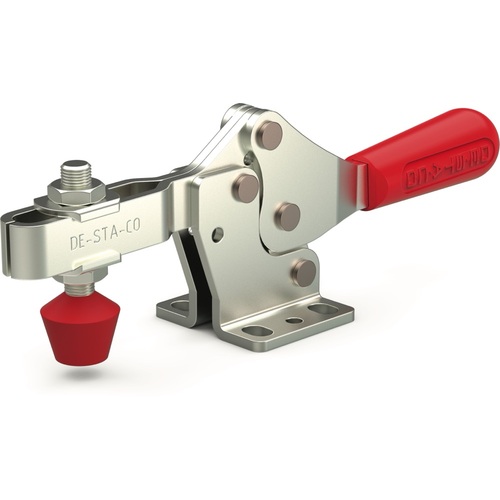

227-U HOLD DOWN ACTION
| Style | Horizontal Handle Hold Down | Bar Style | U-Shape |
| Type | Toggle Clamp | Mounting Diameter | 0.26″ |
| Arm | 1.74″ | Mounting Length | 1.02″ |
| Height Under Clamp Arm | 1.25″ | Mounting Width | 1.24″ |
| Holding Capacity | 500 lbs | Overall Width | 1.74″ |
| Overall Height | 2.40″ | Spindle Size | M8 or 5/16″ |
| Overall Length | 7.48″ | Base Length | 1.57″ |
| Spindle | .55″ | Maximum Clamping Thickness | 1.25″ |
| Thread Size | M8 | Toggle Lock Plus Lever | No |
| model_no | 227-U | Bar Type | Flanged |
| Includes | 91 | Clamp Arm Length | 2.65″ |
Product Features
| Remarks | •Used in drilling, testing, gluing and other processing applications. •Suitable for use in welding, fixtures, in gauge manufacturing as well as in the woodworking industry. | Country of Origin | USA |
Shipping Info
Package Length
12.00000
Package Width
5.50000
Package Height
2.40000
Package Weight
0.725
