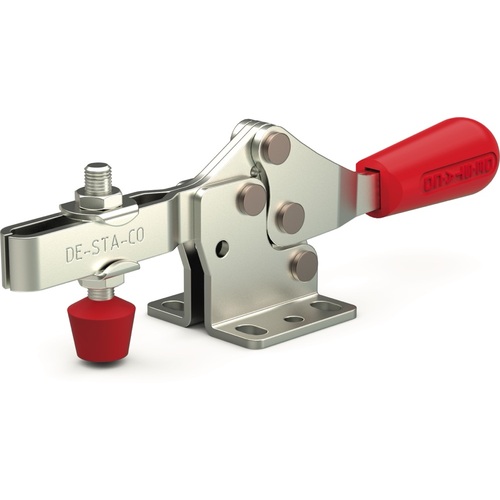

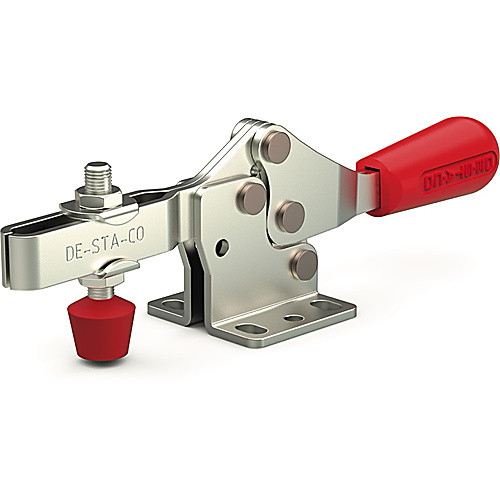

217-U HOLD DOWN ACTION

| Style | Horizontal Handle Hold Down | Bar Style | U-Shape |
| Type | Toggle Clamp | Mounting Diameter | 0.22″ |
| Arm | 1.55″ | Mounting Length | 1.03″ |
| Height Under Clamp Arm | .92″ | Mounting Width | 1.12″ |
| Holding Capacity | 200 lbs | Overall Width | 1.55″ |
| Overall Height | 1.95″ | Spindle Size | M6 or 1/4″ |
| Overall Length | 6.58″ | Base Length | 1.46″ |
| Spindle | .47″ | Maximum Clamping Thickness | .92″ |
| Thread Size | M6 | Toggle Lock Plus Lever | No |
| model_no | 217-U | Bar Type | Flanged |
| Includes | 91 | Clamp Arm Length | 2.30″ |
Product Features
| Remarks | •Used in drilling, testing, gluing and other processing applications.
•Suitable for use in welding, fixtures, in gauge manufacturing as well as in the woodworking industry. | Country of Origin | USA |
Shipping Info
Package Length
7.50000
Package Width
4.50000
Package Height
1.56000
Package Weight
0.422
