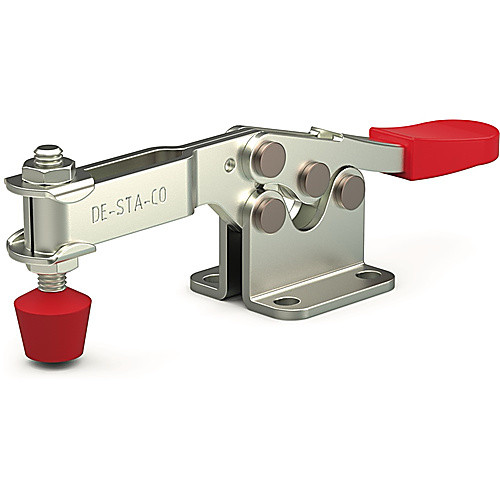

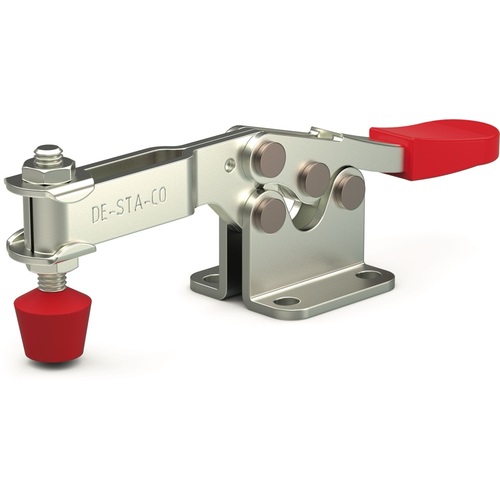

215-U HOLD DOWN ACTION
| Style | Horizontal Handle Hold Down | Bar Style | U-Shape |
| Type | Toggle Clamp | Mounting Diameter | 0.24″ |
| Arm | 1.38″ | Mounting Length | 1.06″ |
| Height Under Clamp Arm | 1″ | Mounting Width | .87″ |
| Holding Capacity | 200 lbs | Overall Width | 1.38″ |
| Overall Height | 1.53″ | Spindle Size | M6 or 1/4″ |
| Overall Length | 5.46″ | Base Length | 1.43″ |
| Spindle | .47″ | Maximum Clamping Thickness | 1″ |
| Thread Size | M6 | Toggle Lock Plus Lever | No |
| model_no | 215-U | Bar Type | Flanged |
| Includes | 87 | Clamp Arm Length | 2.25″ |
Product Features
| Remarks | •Used in drilling, testing, gluing and other processing applications. •Suitable for use in welding, fixtures, in gauge manufacturing as well as in the woodworking industry. | Country of Origin | Thailand |
Shipping Info
Package Length
12.50000
Package Width
6.00000
Package Height
1.36000
Package Weight
0.328
