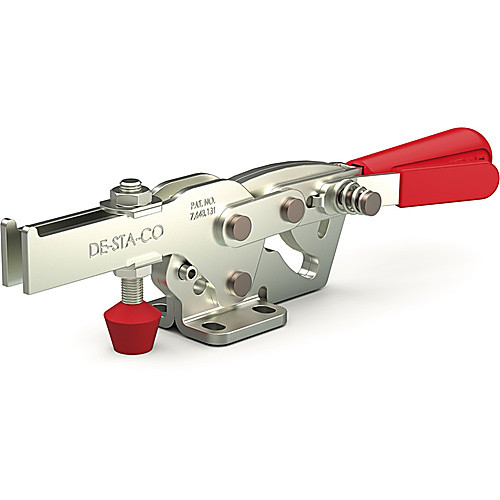

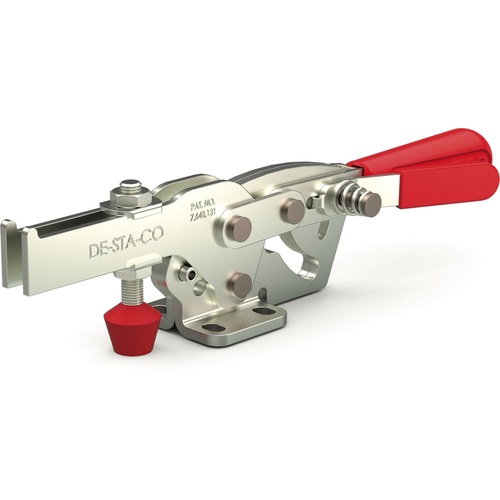

Toggle Clamp - Model 2027-UR Horizontal Hold Down U-Shape Bar Style; 840 lbs Holding Capacity
| Style | Horizontal with Release Lever Catch | Mounting Diameter | 0.27″ |
| Type | Toggle Clamp | Mounting Length | 1.03″ |
| Arm | 1.81″ | Mounting Width | 1.21″ |
| Height Under Clamp Arm | 1.32″ | Overall Width | 1.81″ |
| Holding Capacity | 840 lbs | Spindle Size | M8 or 5/16″ |
| Overall Height | 2.25″ | Base Length | 1.56″ |
| Overall Length | 9.88″ | Maximum Clamping Thickness | 1.32″ |
| Spindle | .55″ | Toggle Lock Plus Lever | Yes |
| Thread Size | M8 | Bar Type | Flanged |
| model_no | 2027-UR | Clamp Arm Length | 2.86″ |
| Bar Style | U-Shape |
Product Features
| Remarks | •New Generation Horizontal Clamps •Offers an average of twice the holding capacity of legacy models •Order numbers that end in "R" come with Locking Lever (R) | Country of Origin | USA |
Shipping Info
Package Length
8.80000
Package Width
3.60000
Package Height
1.70000
Package Weight
1.4
