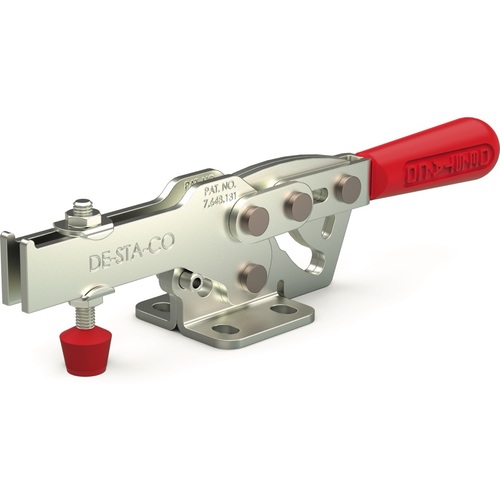

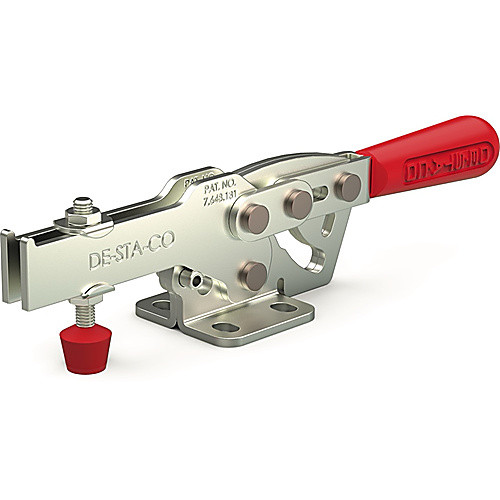

Toggle Clamp - Model 2017U Horizontal Hold Down U-Shape Bar Style; 560 lbs Holding Capacity

| Style | Horizontal Handle Hold Down | Mounting Diameter | 0.27″ |
| Type | Toggle Clamp | Mounting Length | 1.03″ |
| Arm | 1.86″ | Mounting Width | 1.21″ |
| Height Under Clamp Arm | .98″ | Overall Width | 1.86″ |
| Holding Capacity | 560 lbs | Spindle Size | M6 or 1/4″ |
| Overall Height | 1.95″ | Base Length | 1.68″ |
| Overall Length | 8.65″ | Maximum Clamping Thickness | .98″ |
| Spindle | .47″ | Toggle Lock Plus Lever | No |
| Thread Size | M6 | Bar Type | Flanged |
| model_no | 2017-U | Clamp Arm Length | 2.53″ |
| Bar Style | U-Shape |
Product Features
| Remarks | •New Generation Horizontal Clamps
•Offers an average of twice the holding capacity of legacy models
•Order numbers that end in "R" come with Locking Lever (R) | Country of Origin | USA |
Shipping Info
Package Length
7.00000
Package Width
5.00000
Package Height
1.85000
Package Weight
0.4
