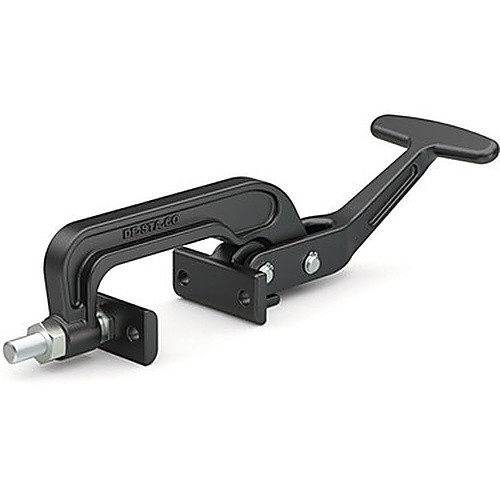

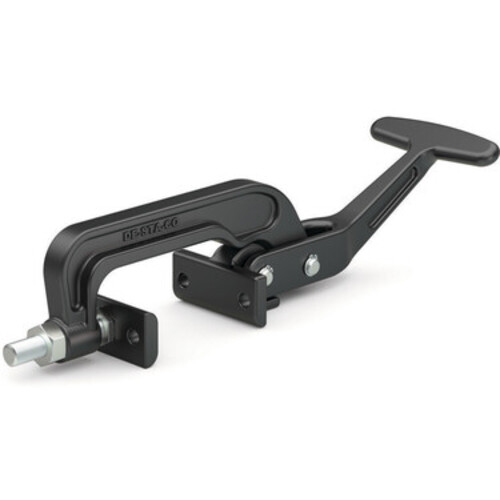

353–35 PARTING LINE CLAMP 35MM
| Style | Manual Toggle Clamp | Overall Width | 3.15 |
| Type | Pull Action Latch Clamp | Spindle Size | M10 |
| Arm | Fixed | Width Between Mounting Base | 1.57 |
| Height Under Clamp Arm | 1.38 | Base Length | 2.2 |
| Holding Capacity | 2800 lbs | Latch Distance | 1.38 |
| Overall Height | 2.46 | Latch Plate Hole Diameter | 0.27 |
| Overall Length | 9.5 | Latch Plate Length | 2.2 |
| Handle | T-Handle | Latch Plate Overall Length | 2.2 |
| Spindle | Tapered Bolt | Maximum Clamping Thickness | 1.38 |
| Thread Size | M10 | Range | 0-1.38 |
| model_no | 353-35 | Toggle Lock Plus Lever | NO |
| Includes | 353908 Spindle and 353004 Keeper Plate | For Use With | NA |
| Bar Style | Fixed | Accessory Fastener Included | YES |
| Distance From Surface to Plunger | 1.38 | Clasp Arm Length | NA |
| Jaw Depth | 1.12 | Bar Type | Fixed |
| Mounting Diameter | 0.27 | Cap Diameter | NA |
| Mounting Length | 2.2 | Series | Pull Action Latch |
| Mounting Width | 1 | Clamp Arm Length | 1.12 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
2.1
