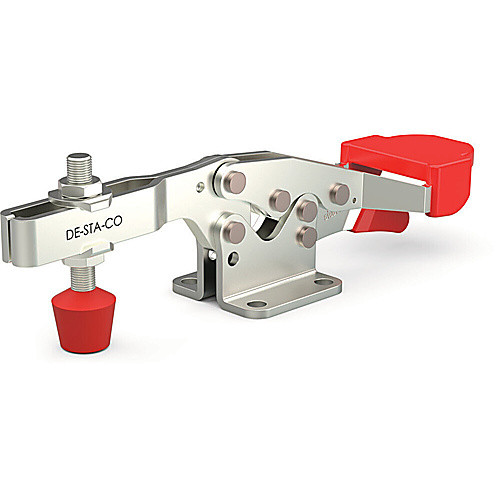

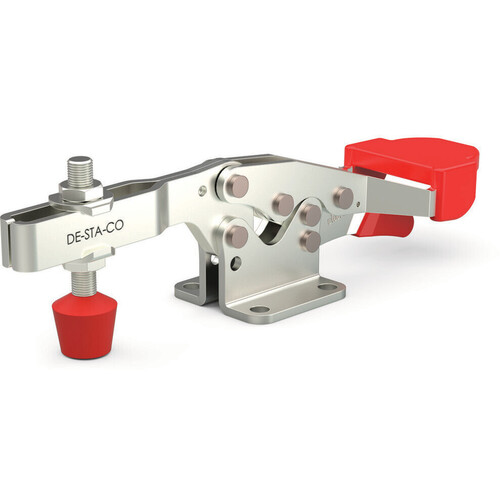

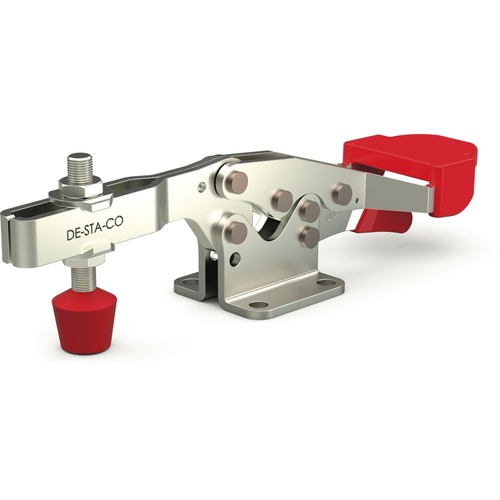

235-UR TOGGLE CLAMP PLUS
| Style | Horizontal with Release Lever Catch | Bar Style | U-Shape |
| Type | Toggle Clamp | Mounting Diameter | 0.33″ |
| Arm | 2.26″ | Mounting Length | 1.63″ |
| Height Under Clamp Arm | 1.70″ | Mounting Width | 1.63″ |
| Holding Capacity | 750 lbs | Overall Width | 2.26″ |
| Overall Height | 2.56″ | Spindle Size | M10 or 3/8″ |
| Overall Length | 10.50″ | Base Length | 2.25″ |
| Spindle | .78″ | Maximum Clamping Thickness | 1.70″ |
| Thread Size | M10 | Toggle Lock Plus Lever | Yes |
| model_no | 235-UR | Bar Type | Flanged |
| Includes | 92 | Clamp Arm Length | 4.16″ |
Product Features
| Remarks | •Used in drilling, testing, gluing and other processing applications. •Suitable for use in welding, fixtures, in gauge manufacturing as well as in the woodworking industry. | Country of Origin | USA |
Shipping Info
Package Length
8.90000
Package Width
6.10000
Package Height
4.60000
Package Weight
2.15
