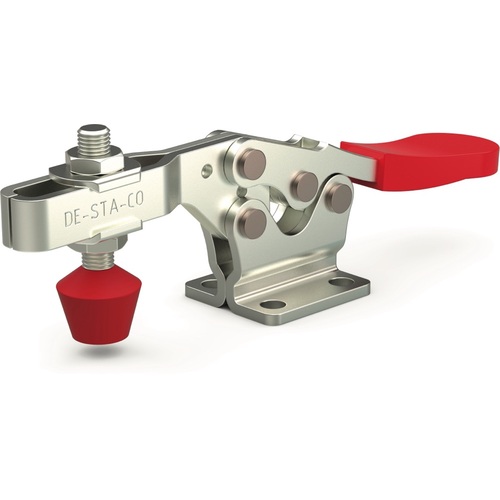

225-U HOLD DOWN ACTION
| Style | Horizontal Handle Hold Down | Bar Style | U-Shape |
| Type | Toggle Clamp | Mounting Diameter | 0.26″ |
| Arm | 1.37″ | Mounting Length | 1″ |
| Height Under Clamp Arm | 1.31″ | Mounting Width | .87″ |
| Holding Capacity | 500 lbs | Overall Width | 1.37″ |
| Overall Height | 1.84″ | Spindle Size | M8 or 5/16″ |
| Overall Length | 6.91″ | Base Length | 1.50″ |
| Spindle | .55″ | Maximum Clamping Thickness | 1.31″ |
| Thread Size | M8 | Toggle Lock Plus Lever | No |
| model_no | 225-U | Bar Type | Flanged |
| Includes | 92 | Clamp Arm Length | 2.69″ |
Product Features
| Remarks | •Used in drilling, testing, gluing and other processing applications. •Suitable for use in welding, fixtures, in gauge manufacturing as well as in the woodworking industry. | Country of Origin | Thailand |
Shipping Info
Package Length
7.50000
Package Width
5.00000
Package Height
1.44000
Package Weight
0.55
